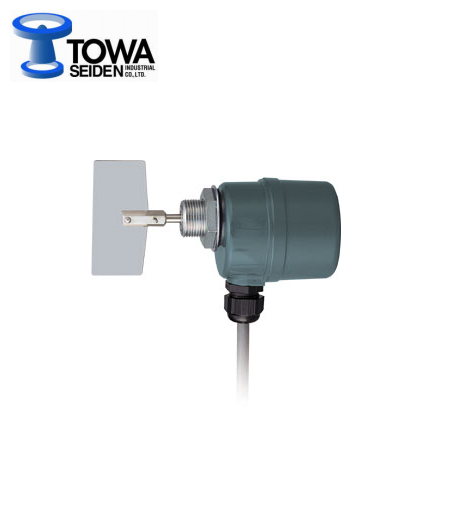

Cảm biến báo mức (Level Sensor)_Model: HL-400GZE

Cảm biến báo mức (Level Sensor) - Towa Seiden

Model: HL-400GZE

Specifications:

Power supply voltage: AC 100/110 V 50/60 Hz or AC 200/220 V 50/60 Hz

Mounting Method: G3/4”(Tighteningthebasemountingplatewithalocknut)

Power consumption: 1.5 W

Contact output: 1C Contact AC 250 V 5 A (Resistance load)

Detection torque (*1): About 4.9 N·cm

Slip torque (*2): About 11.76 - 14.70 N·cm

Number of rotations: 1 rpm

Materials: Product body chassis and cover Die-cast zinc Main shaft and vane SUS304 Sealing Nitrile rubber

Ambient temperature during use: Inside the tank 60°C max/ Outside the tank 55°C max

Pressure during use: Insidethetank0–0.49kPa

Painting color: Munsell 7.5GB4/15
