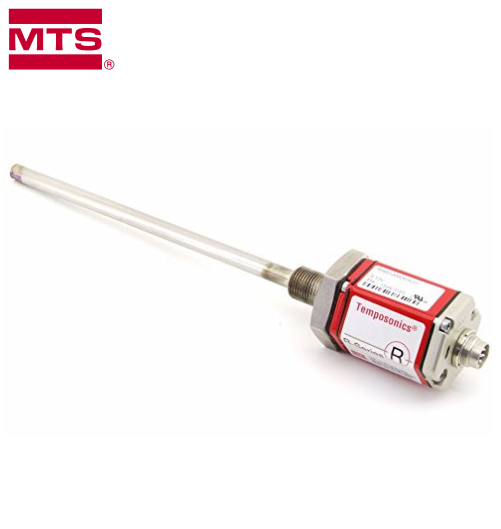

Cảm biến vị trí (Position sensor)_Model: RPS1000MR021A01

Cảm biến vị trí (Position sensor) - MTS Sensor

Model: RPS1000MR021A01

Technical data:

Measured value: Position, velocity / Option: Multi-magnet measurement (max. 4 positions simultaneous)

Stroke length: Profile: 25…5000 mm / Rod: 25…7600 mm

Interface: Ethernet POWERLINK Standardization Group (ESPG)

Data protocol: POWERLINK V2 according to IEEE 802.3

Resolution - Displacement: up to 1 µm

Update time: 1.0 ms up 2400 mm / 2.0 ms up 4800 mm / 4.0 ms up 7600 mm stroke length

Linearity: 1 < ± 0.01 % F.S. (Minimum ± 40 µm)

Repeatability: < ± 0.001 % F.S. (Minimum ± 2.5 µm)

Temperature coefficient: < 15 ppm/°C

Hysteresis: < 4 µm

Magnet movement velocity: any

Operating temperature: 0…+70 °C

Dew point, humidity: 90 % rel. humidity, no condensation

Ingress protection 2: Profile: IP65 / Rod: IP67

Shock test: 100 g (single shock), IEC-Standard 6008-2-27

Vibration test: 15 g / 10…2000 Hz, IEC-Standard 6008-2-6 (resonance frequencies excluded)
