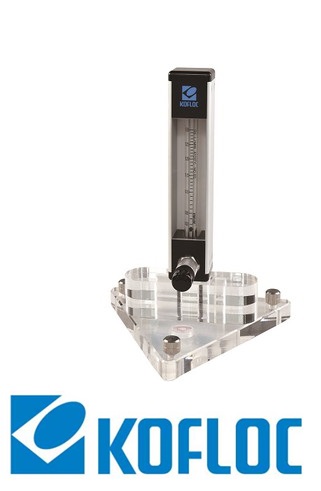

RK1360 Thiết bị đo lưu lượng và điều khiển KoflocVietnam ANSdanang

Gas Liquid
Fluids Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas)
For other gases, please consult us regarding conversion
conditions or calibration with the actual gas to be used.
* Option: Scales for two types of fluids
Standard fluid (Water)
For other liquids, please consult us regarding conversion
conditions or calibration with actual liquid to be used.
Flow range 0.5-5ML/MIN to 3-30L/MIN
(Refer to the Capacity List on page 55.)
* Option: 0.5–3 ML/MIN
0.5-5ML/MIN to 0.1-1L/MIN
(Refer to the Capacity Table on page 55.)
* Option: 0.5–3 ML/MIN
Accuracy FS ±2% (Measurement point)
 * Option: FS ±1% (Measurement point)
FS ±2% (Measurement point)
Proof pressure 100 ML/MIN or less: 1.0 MPa
5 L/MIN or less: 0.7 MPa
10 L/MIN or more: 0.5 Mpa
5 ML/MIN or less: 1.0 MPa
150 ML/MIN or less: 0.7 MPa
200 ML/MIN or less: 0.5 Mpa
Available scale 10:1 * Option 20:1


Material SS BS
Body block SUS316 Brass
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex®, SUS316, glass
Protective cover Acrylic resin
Temperature
resistance
MAX60℃
End connection Rc 1/4 (Standard), Rc 1/8 (Optional)
