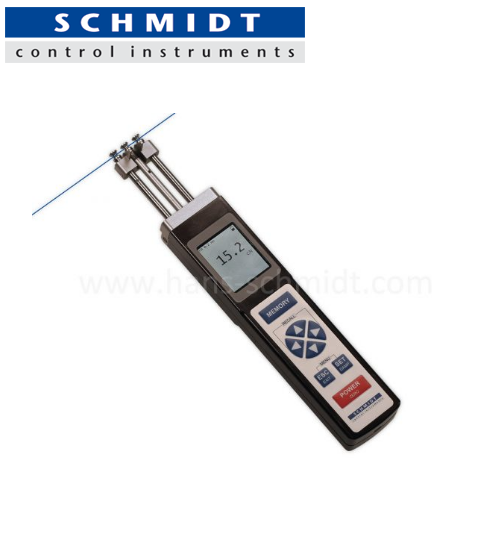

Thiết bị đo lực căng kỹ thuật số (Tension Meter) – Hans Schmidt

Model: ETB-500

Special Features:

Tension meter ETB and ETX with guide rollers mounted on long shafts to reach into tightest places.

Hand-held instrument with ball-bearing mounted, V-grooved guide rollers up to 2000 m/min, for higher line speed use model ETPB or ETPX.

Coloured, backlight TFT display with 3 different display modes
– numeric
– numeric with live bargraph
– numeric with graph (time-tension)

The display rotates in 90° steps for better reading

Automatic “Zero-Setting” in each measuring position using a special sensor technique

Selectable units of measurement: cN, g, N and lb

Very high data sampling rate (internal 1 kHz)

Storage of MIN, MAX, last reading, average and standard deviation per measuring interval

User-set MIN and MAX alarms with indication of TFT display if reading is out of limits

Adjustable electronic damping for better reading when tension fluctuates

3 separate calibration material memory locations for custom calibrations

Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
