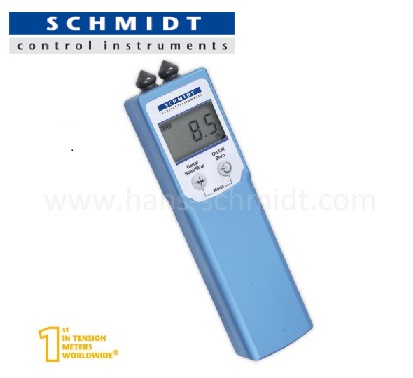

Tension Meter in Circular Knitting Machines_PT-100

Tension Meter PT-100: Measuring range 0.5 - 100.0 cN

For fibers up to 100 tex or 1000 denier

Electronic pocket sized tension meter for measuring low tensions of fibres, yarns, etc. Mostly used on circular knitting machines etc.

Hand-held device with small measuring head

2 Roller compact tension meter with digital display

* Features:

Tension meter PT-100 with easy Slide-In material threading by cone shaped, all-bearing mounted guide roller and turning the instrument

Automatic »zero setting« to zero the instrument in any measuring position

Adjustable electronic damping to provide steady tension readings

When the series of measurement ends, the average value can be displayed

Tension meter PT-100 for right and left hand use

User-set measuring units of cN or grams

Measuring head width 24 mm (outer distance of guide rollers)

Powered by rechargeable Lithium Polymer battery (40 h battery life with 3.5 h charge time) with a universal voltage AC-charger
