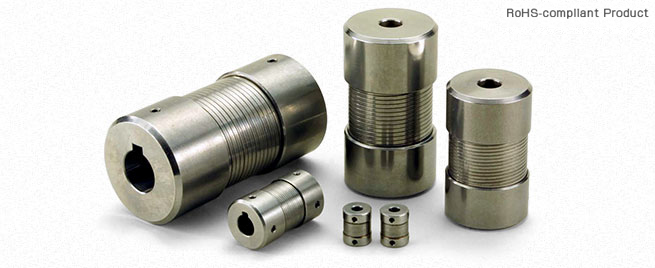

Mr. BảoBAUMANNFLEX MIKI PULLEY Vietnam
Inverter Miki Pulley, DC Motors Miki Pulley, Electoromagnetic Clutches Miki Pulley, Brakes Miki Pulley, Position Control Miki Pulley, ERVO FLEX Miki Pulley, HELI-CAL Miki Pulley, BAUMANN FLEX Miki Pulley, SCHMIDT Coupling Miki Pulley, CENTA FLEX Miki Pulley, Rubber coupling Miki Pulley, plastic coupling Miki Pulley, ETP Bushing Miki Pulley, TORQ-TENDER Miki Pulley, Rubber Suspension Miki Pulley, Coupling Miki Pulley, Miki Pulley Vietnam,
SFC-002SA2 | SFC-005SA2 | SFC-010SA2 | SFC-020SA2 |SFC-025SA2|SFC-030SA2 |SFC-035SA2 | SFC-040SA2 | SFC-050SA2 |SFC-055SA2 | SFC-060SA2 | SFC-080SA2 | SFC-090SA2 | SFC-100SA2 | SFC-002DA2 | SFC-005DA2 | SFC-010DA2 | SFC-020DA2 | SFC-025DA2 | SFC-030DA2 | SFC-035DA2 | SFC-040DA2 | SFC-050DA2 | SFC-055DA2 | SFC-060DA2 | SFC-080DA2 | SFC-090DA2 | SFC-100DA2
ADAPTER SFC-050SA2/DA2 | ADAPTER SFC-060SA2/DA2 | Coupling SFH-150S|Coupling SFH-150S|Coupling SFH-150S|Coupling SFH-170S|Coupling SFH-170S| Coupling SFH-170S| Coupling SFH-190S| Coupling SFH-190S| Coupling SFH-190S| Coupling SFH-210S | Coupling SFH-210S |Coupling SFH-210S|Coupling SFH-220S| Coupling SFH-220S
| Model | Torque | Misalignment | Max. rotation speed ［min-1］ | Torsional stiffness ［N・m/rad］ | Moment of inertia ［kg・m2］ | Mass ［kg］ | |||
|---|---|---|---|---|---|---|---|---|---|
| Nominal ［N・m］ | Max. ［N・m］ | Parallel ［mm］ | Angular ［°］ | Axial ［mm］ | |||||
| MM-6K | 2.5 | 5 | 0.3 | 3 | ＋0.6 | 20000 | 143 | 7.65×10-7 | 0.03 |
| MM-8K | 5 | 10 | 0.3 | 3 | ＋0.8 | 15000 | 286.5 | 4.08×10-6 | 0.07 |
| MM-12K | 10 | 20 | 0.4 | 3 | ＋1.0 | 12000 | 573 | 1.43×10-5 | 0.14 |
| MM-14K | 10 | 20 | 0.5 | 3 | ＋1.0 | 10000 | 573 | 2.47×10-5 | 0.15 |
| MM-16K | 20 | 40 | 0.6 | 3 | ＋1.2 | 9000 | 1146 | 6.12×10-5 | 0.30 |
| MM-19K | 20 | 40 | 0.7 | 3 | ＋1.2 | 8000 | 1146 | 8.42×10-5 | 0.32 |
| MM-20K | 40 | 80 | 0.7 | 3 | ＋1.6 | 7000 | 2292 | 1.99×10-4 | 0.70 |
| MM-24K | 40 | 80 | 0.9 | 3 | ＋1.6 | 7000 | 2292 | 2.63×10-4 | 0.75 |
| MM-25K | 90 | 180 | 0.9 | 3 | ＋2.0 | 6000 | 3438 | 5.66×10-4 | 1.25 |
| MM-28K | 90 | 180 | 1.0 | 3 | ＋2.0 | 6000 | 2865 | 5.77×10-4 | 1.35 |
| MM-30K | 150 | 300 | 1.1 | 3 | ＋2.5 | 5000 | 4297.5 | 1.39×10-3 | 2.10 |
| MM-35K | 220 | 440 | 1.2 | 3 | ＋3.2 | 4500 | 6303 | 3.01×10-3 | 3.50 |
| Model | Torque | Misalignment | Max. rotation speed ［min-1］ | Torsional stiffness ［N・m/rad］ | Moment of inertia ［kg・m2］ | Mass ［kg］ | |||
|---|---|---|---|---|---|---|---|---|---|
| Nominal ［N・m］ | Max. ［N・m］ | Parallel ［mm］ | Angular ［°］ | Axial ［mm］ | |||||
| MM-6K-S | 2.5 | 5 | 0.3 | 3 | ＋0.6 | 20000 | 143 | 7.65×10-7 | 0.03 |
| MM-8K-S | 5 | 10 | 0.3 | 3 | ＋0.8 | 15000 | 286.5 | 4.08×10-6 | 0.07 |
| MM-12K-S | 10 | 20 | 0.4 | 3 | ＋1.0 | 12000 | 573 | 1.43×10-5 | 0.14 |
| MM-16K-S | 20 | 40 | 0.6 | 3 | ＋1.2 | 9000 | 1146 | 6.12×10-5 | 0.30 |
| MM-20K-S | 40 | 80 | 0.7 | 3 | ＋1.6 | 7000 | 2292 | 1.99×10-4 | 0.70 |
| MM-25K-S | 90 | 180 | 0.9 | 3 | ＋2.0 | 6000 | 3438 | 5.66×10-4 | 1.25 |
