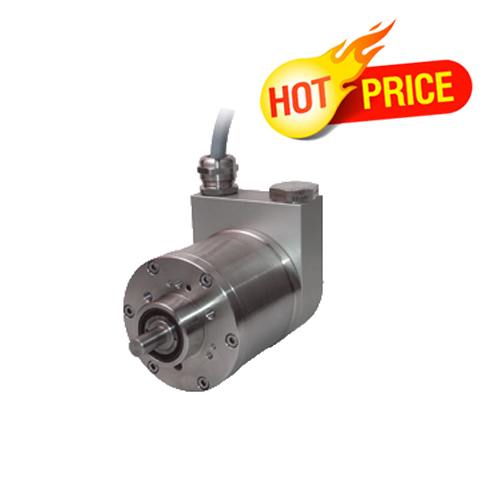

P+F Vietnam,Bộ mã hóa PVM78E-011DRR0BN-1213 P+F

Bộ mã hóa đa hướng tuyệt đối PVM78E

Lên đến 30 bit đa hướng
Phê duyệt ATEX
Sự chấp thuận của IECEx
Vỏ bọc chống cháy
Nắp kết nối có thể tháo rời

Datasheet excerpt: Technical data of PVM78E

General specifications
Detection type		photoelectric sampling
Device type		Multiturn absolute encoder
Functional safety related parameters
MTTF_d		210 a
L₁₀		7.7 E+9 at 3000 rpm
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 230 mA at 10 V DC max. 100 mA at 24 V DC
Time delay before availability		< 1000 ms
Linearity		± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
Output code		binary code
Code course (counting direction)		programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending)
Interface
Interface type		PROFIBUS
Resolution
	Single turn	up to 16 Bit
	Multiturn	up to 14 Bit
	Overall resolution	up to 30 Bit
Transfer rate		0.0096 ... 12 MBit/s
Standard conformity		PNO profile 3.062, RS-485
Connection
Cable		∅9.6 mm, 7-core
Terminal compartment		see ordering information
Standard conformity
Degree of protection		DIN EN 60529, IP66
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Ambient conditions
Operating temperature		-40 ... 70 °C (-40 ... 158 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
	Combination 1	housing: anodized aluminum flange: anodized aluminum shaft: Stainless steel 1.4401 / AISI 316
	Combination 2 (Inox)	housing: Stainless steel 1.4404 / AISI 316L flange: Stainless steel 1.4404 / AISI 316L shaft: Stainless steel 1.4401 / AISI 316
Mass		approx. 2600 g (combination 1) approx. 3900 g (combination 2)
Rotational speed		max. 3000 min ^-1
Moment of inertia		180 gcm²
Starting torque		≤ 4 Ncm
Shaft load
	Axial	60 N
	Radial	80 N
Data for application in connection with hazardous areas
EU-type examination certificate		ITS 15 ATEX 18372X IECEx ITS 15.0061X
	Marking	II 2G Ex d IIC T5 Gb II 2D Ex tb IIIC T100°C Db
Directive conformity
	Directive 2014/34/EU	IEC 60079-0:2017 , EN IEC 60079-0:2018 , IEC 60079-1:2014 , EN 60079-1:2014 , IEC 60079-31:2013 , EN 60079-31:2014

Classifications

System	Classcode
ECLASS 11.0	27270502
ECLASS 10.0.1	27270502
ECLASS 9.0	27270502
ECLASS 8.0	27270502
ECLASS 5.1	27270502
ETIM 8.0	EC001486
ETIM 7.0	EC001486
ETIM 6.0	EC001486
ETIM 5.0	EC001486
UNSPSC 12.1	39121527
