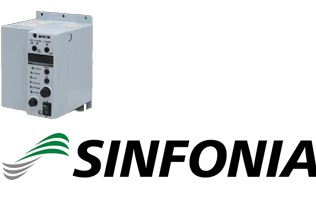

C10-4DM Small Vibrating Equipment Sinfonia
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: ACCURATE SENSOR
Mr. BảoC10-4DM Small Vibrating Equipment Sinfonia Vietnam ANSdanang
C10-4DM
|
Simple and easy start up |
• Simple and easy start up
Stroke sensor gain adjustment is not required. Just by selecting a drive unit model at the initial setting stage, necessary parameters are set automatically.
• Easy operation
‘Selection Dial’ and ‘Setting Encoder’ allow for easy operation for anyone.
• Save more space
This controller has the same dimensions as C10-5VF/5VFEF and the footprint is reduced by 36% from the previous model.
• Easy wiring
Between a driving unit and a controller are connected by connectors.
• Energy-saving auto-tuning
Auto tuning function reduces power consumption by tracking the resonance point and keeping vibration frequency on it continuously.
Electronic control of horizontal/vertical amplitudes and phase difference provides ideal vibration characteristics for any type of workpiece.
| Dimensions |
 |
| Dimensions Chart |
| Model |
C10-4DM |
||
| Input power | AC200-230V ±10% 50/60Hz | ||
| Control system | PWM system | ||
| Output | Voltage | 0～190V | |
| Vibration frequency | 28～45Hz, 65～120Hz, 90～180Hz | ||
| Max. current | horizontal: 4A vertical: 2A |
||
| Oparating mode | Standard drive | Automatic tuning to horizontal resonance point. By amplitude phase control without frequency setting | |
| Additional features |
Constant phase difference control | Horizontal/vertical amplitude phase difference kept constant | |
| Speed selection | Choice of 4 pre-set speeds by external signal | ||
| Start/Stop control | Stops and starts by external signal | ||
| Output signal | Outputs signal tuned to unit operation | ||
| Soft start | Start-up time 0.2~4.0 seconds | ||
| On/Off delay timer | Delay time 0.2~60 seconds | ||
| Sensor power source | 3P power plug gives DC12V, max. 80mA | ||
| Synchronized power source |
Function | Power source synchronized to parts feeder operation (RUN) | |
| Control system | On/Off control through a triac | ||
| Output voltage | As power source input to controller | ||
| Other | Max. current | 2A | |
| Noise resistant voltage | Above 1000V | ||
| Ambient temperature range | 0〜40℃ | ||
| Ambient humidity range | 10～90% (No condensation) | ||
| Applicable Space | Indoor (Place where no corrosive gas, and dust.) | ||
| Color of case | Japan Paint Industry Association U75-70D | ||
| Weight | 2.0kg | ||
| Compatible equipment | DM-30C, 38C, 45C, 65C DMS-15C, 20C, 25C, 30C, 38C, 45C |
||
