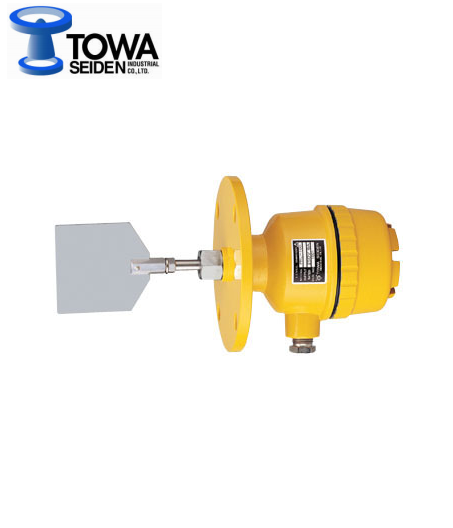

Cảm biến báo mức dạng cánh xoay (Rotary paddle type level switch)_Model: PRL-100

Cảm biến báo mức dạng cánh xoay (Rotary paddle type level switch) - Towa Seiden

Model: PRL-100 (PRL-101 – L – 150) (Length = 150mm))

Standard specifications:

*Power voltage 100/110V AC 50/60Hz, or 200/220V AC 50/60Hz

*Attaching method Flange attachment JIS 5K65A

*Power consumption 2.5W

*Contact output 1C contact 250V AC 5A (resistance load)

*Detection torque (*1) About 10.0 N cm

*Slip torque (*2) About 30.0 N cm

*Rotation speed 1 rpm

*Material

+Main body case, flange: aluminum casting

+Main shaft, blade: SUS304

+Seal: nitrile rubber

*Operating temperature

+Inside the tank: 70 C max.

+Outside the tank: 55 C max.

*Operating pressure: Inside the tank: 0 - 196 kPa

*Paint color Munsell 10YR7.5/14
