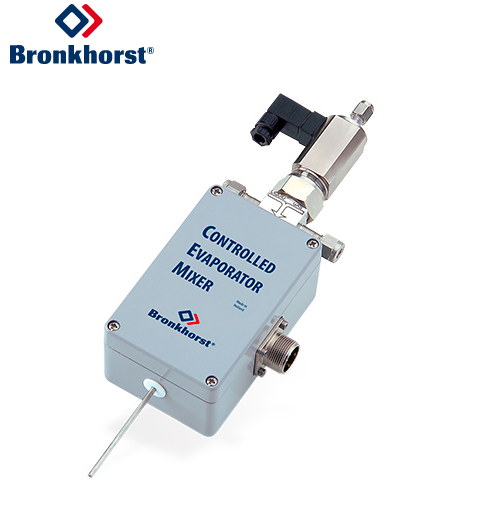

Cảm biến lưu lượng hơi_W-101A

Max. Kv-value

6,6 x 10^-2

Max. heating temperature

200°C

Material (wetted parts)

Stainless steel 316L or comparable

Pressure rating

100 bar(a)

Max. ΔP

5...40 bar (depends on Kv-value; contact your distributor for details)

Process connections

Gas and liquid inlet: compression type or face seal couplings;
Vapour outlet: 1/8" tube (other options on request);
Purge connection: 1/8" OD or 1/8" face seal

Seals

Metal-to-metal

Plunger

Kalrez^®; other on request

Protection class

IP40

Power supply

Mixing valve: +15...24 Vdc +/-10%
Heater: 44 Vac

Power consumption

Mixing valve: 4 W (max.);
Heater: 150 W (nominal)

Heater capacity

10 W

Connector

Amphenol 6-pin male
