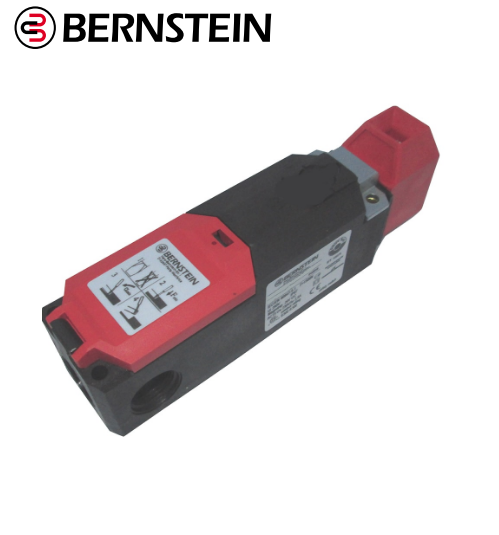

Công tắc an toàn (Safety switch)_Artical number: 6118119095

Công tắc an toàn (Safety switch) - Bernstein Viet Nam

Artical number: 6118119095

Electrical data:

Protection class: II, totally insulated

Rated insulation voltage: Ui 250V

Conv. thermal current: Ithe 2,5A

Utilization category: AC-15, Ue /Ie 230V/2,5A

Direct opening action: according to IEC/EN 60947-5-1, Annex K

Short-circuit protective device: 4A gL

Duty cycle: 100% ED (at E1/E3; E2)

Temperature class: B (130°C)

Inrush power consumption: 56VA (0,2s)

Permanent power consumption: 1,1VA

Switch operations permanent: 600/h

Operating voltage: 24V AC/DC
