SPECIFICATION
|

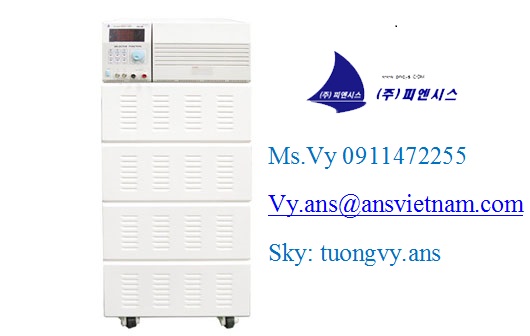

ESLL-5kW
|
ESHL-5kW
|
||
|
OPERATING
RANGE |
POWER
|
5kW
|
5kW
|
|
|
VOLTAGE
|
1~80V
|
5~500V
|
||
|
CURRENT
|
0~500A
|
0~120A
|
||
|
MIN. OPERATING VOLTAGE
|
1.0V at 40A
|
1.0V at 40A
|
||
|
MODE
|
CC
|
RANGE
|
0~10A/10~100A/100~500A
|
0~10A/10~100A/100~120A
|
|
RESOLUTION
|
1mA/10mA/100mA
|
1mA/10mA/100mA
|
||
|
ACCURACY
|
0.06%+0.2%F.S
|
0.06%+0.2%F.S
|
||
|
CV
|
RANGE
|
1~80V
|
5~500V
|
|
|
RESOLUTION
|
10mV
|
10mV
|
||
|
ACCURACY
|
0.08%+0.1%F.S
|
0.08%+0.1%F.S
|
||
|
CP
|
RANGE
|
0~10W/10~100W/100~1000W/1000~5000W
|
0~10W/10~100W/100~1000W/1000~5000W
|
|
|
RESOLUTION
|
10mW/100mW/1W
|
10mW/100mW/1W
|
||
|
ACCURACY
|
0.5%+0.5%F.S
|
0.5%+0.5%F.S
|
||
|
CR
|
RANGE
|
0.02~10Ω/10~100Ω/
|
0.348~10Ω/10~100Ω/
|
|
|
100~1000Ω/1000~8000Ω
|
100~1000Ω/1000~8000Ω
|
|||
|
RESOLUTION
|
1mΩ/10mΩ/100m Ω/1Ω
|
1mΩ/10mΩ/100m Ω/1Ω
|
||
|
ACCURACY
|
0.06%+0.2%F.S
|
0.06%+0.2%F.S
|
||
|
FUNCTION
|
LOAD ON DELAY TIME
|
1ms~5000ms
|
1ms~5000ms
|
|
|
DYNAMIC
|
MEMORY
|
3CH(T1,T2,T3)
|
3CH(T1,T2,T3)
|
|
|
TIME
|
100㎲~1s/1~5s
|
100㎲~1s/1~5s
|
||
|
RESOLUTION
|
100㎲/1㎳
|
100㎲/1㎳
|
||
|
SLEW RATE
|
0.001~2A/㎲
|
0.001~2A/㎲
|
||
|
RESOLUTION
|
0.001A/㎲
|
0.001A/㎲
|
||
|
CURRENT
|
0~10A/10~40A
|
0~10A/10~40A
|
||
|
RESOLUTION
|
1mA/10mA
|
1mA/10mA
|
||
|
VOLTAGE
READ BACK |
RANGE
|
0~10V/10~80V
|
0~10V/10~80V
|
|
|
RESOLUTION
|
1mV/10mV
|
1mV/10mV
|
||
|
ACCURACY
|
0.05%+0.1%F.S
|
0.05%+0.1%F.S
|
||
|
CURRENT
READ BACK |
RANGE
|
0~10A/10~100A/100~500A
|
0~10A/10~100A/100~120A
|
|
|
RESOLUTION
|
1mA/10mA/100mA
|
1mA/10mA/100mA
|
||
|
ACCURACY
|
0.1%+0.1%F.S
|
0.1%+0.1%F.S
|
||
|
PROTECTION
|
OPP(POWER)
|
5200W
|
5200W
|
|
|
OVP(VOLTAGE)
|
81.6V
|
510V
|
||
|
OCP(CURRENT)
|
510A
|
122.4A
|
||
|
OTP(TEMPERATURE)
|
85℃
|
85℃
|
||
|
INPUT RESISTANCE(LOAD OFF)
|
80㏀
|
80㏀
|
||
|
V SENSE
|
0~80V
|
0~80V
|
||
|
I MONITOR
|
0~500A/0~10V
|
0~120A/0~10V
|
||
|
EXTERNAL MODE
|
0~500A/0~10V
|
0~1500A/0~10V
|
||
|
PC INTERFACE
|
RS-232/RS-485(Built-in)
|
RS-232/RS-485(Built-in)
|
||
|
WEIGHT (APPROX)
|
200 kg
|
200 kg
|
||
|
DIMENSION(WxHxD)mm
|
700 x 1200 x 750
|
700 x 1200 x 750
|
||
