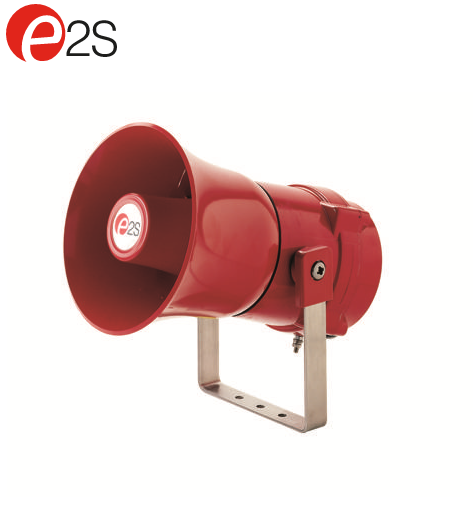

Đèn còi báo động chống cháy nổ (Explosion Proof Alarm Horn Sounder)
Xuất sứ: UK
Nhà cung cấp: ANS Da Nang
Hãng sản xuất: E2S VIET NAM
Mr. BảoĐèn còi báo động (Ex Sounder Horn) - E2S
Model: BEXS110DFAC230AB1A1R
Features:
• Marine grade, corrosion proof, LM6 aluminium enclosure.
• Ingress protection IP66/67
• Stainless steel fixings
• Dual M20 cable entries - adaptors available.
• Stopping plug included.
• Reverse polarity diode fitted.
• Automatic synchronisation on multi-sounder system.
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.
• Stainless steel fixings
• Dual M20 cable entries - adaptors available.
• Stopping plug included.
• Reverse polarity diode fitted.
• Automatic synchronisation on multi-sounder system.
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.
Specification:
| Maximum output: | 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m] |
| Nominal output: | 110dB(A) @ 1m +/- 3dB - Tone 2 |
| [101dB(A) @ 10ft/3m] | |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 110dB(A); Min. 72dB(A) - Tone 2 |
| Effective range: | 100m/328ft @ 1KHz |
| Voltages DC: | 12vDC; 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Stage switching: | Negative or positive |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
| Colour: | Red RAL3000 |
| Grey RAL7038 | |
| Special - available on request | |
| BExS110 horn: | High impact UL94 V0 & 5VA FR ABS |
| Cable entries: | Dual M20 ISO |
| (one stopping plug inc) | |
| Adaptors to M25, 1/2" & 3/4" NPT can be specified | |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included |
| EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor | |
| or diode (DC versions) can be fitted | |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 3.00kg AC: 3.20kg |
