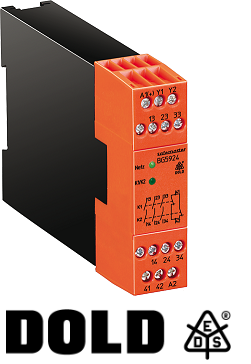

Emergency stop module BG 5924_Art No: 0059339
Xuất sứ: Germany
Nhà cung cấp: ANS- ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: DOLD VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. Bảo* Đặt điểm
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL) 3 to IEC/EN 61508
• According to EN 50156-1 for furnaces
• Single channel or two-channel operation
• Output: max. 4 NO contacts
• AC 230 V model with galvanic separation
• LED indicator for channel 1 / 2 and state of operation
• Short circuit detection between terminal Y1 and common
• BG 5924 with:
- Removable terminal strips
- Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated),
DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
• BG 5924: width 22.5 mm
• IP 5924: width 70 mm
