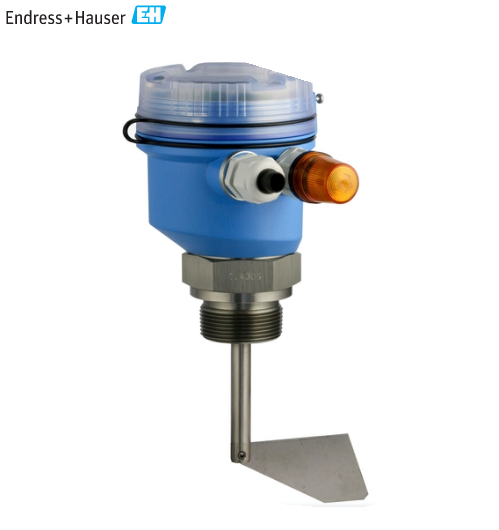

FTE20-AA16AA42 Cảm biến báo mức Point level switch Endress Hauser E+H
Xuất sứ: Germany
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: ENDRESS+HAUSER VIET NAM
Mr. BảoModel: FTE20-AA16AA42/ Cảm biến báo mức (Point level switch)/ Endress Hauser
Measuring principle
Paddle
Characteristic / Application
universally applicable as a full, empty and demand alarm on silos containing solids
Specialities
Rotation Monitoring System
Fold-away paddle
Supply / Communication
230 VAC 50/60 Hz
115 VAC 50/60 Hz
24 VAC 50/60 Hz
20 bis 28 VDC
Ambient temperature
-20 °C ... 60 °C (-4 °F ... 140 °F)
Process temperature
-20 °C ... 80 °C (-4 °F ... 170 °F)
Process pressure absolute / max. overpressure limit
0.5 bar to 1.5 bar (7 psi ... 22 psi)
Min. density of medium
>= 80 g/l
Main wetted parts
1.4305
Max. tensile strength
Rope version >1500N
Process connection
NPT 1 1/2", PBT
NPT 1 1/4", PBT
G 1 1/2", PBT
NPT 1 1/2", 1.4305
NPT 1 1/4", 1.4305
G 1 1/2", 1.4305
Sensor length
75 mm (3")
100 mm (4")
120 mm (4 3/4")
200 mm (8")
300 mm (12")
Rope length of approx 2000 mm (80"), can be shortened
Communication
Micro switch with changeover contact max. 10 A/250 VAC
