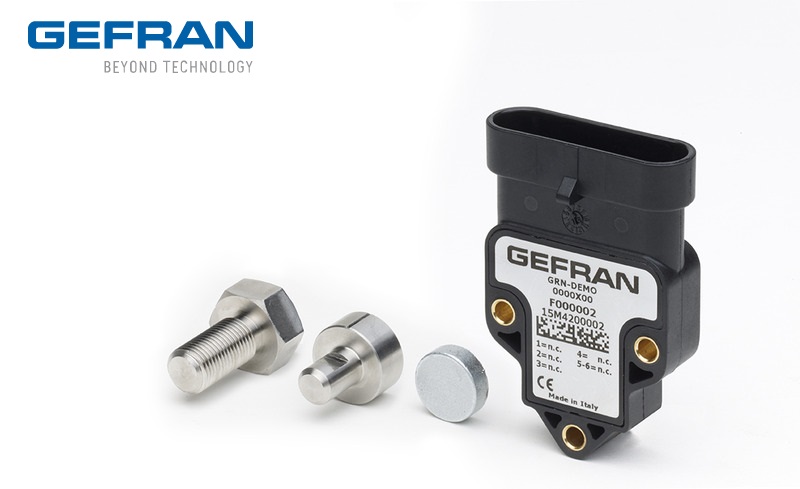

GRN Hall-effect single-turn rotary sensor without shaft
Nhà cung cấp: ANH NGHI SON
Hãng sản xuất: GEFRAN VIET NAM
Hotline
anhnghisonhcmDescription
| Measurement range |
| ±180° - different values on request programmable in steps of ±15° (ONLY for analogue versions) |
| Supply voltage |
| +5Vdc (only for 0.5..4.5Vdc output); +9…+36Vdc (see output signal for right supply voltage) |
| Output signal |
| 0.5...4.5V RATIOMETRIC (supply +5Vdc); 0.5...4.5V; 0...10V; 4...20mA; CANopen, SAE J1939 |
| Electrical connections |
| AMP Superseal 6P 282108-1; cable output 18 AWG 1.65mm OD |
| Resolution and speed of rotation |
| 12 bit (analog output); 14 bit (CANopen/SAE J1939 output); 120 rpm max. |
| Linearity |
| < ±0.5%FS |
| Working and coefficient temperature |
| -40°C ... +85°C (higher values on request); thermal drift < 50 ppm/°C |
| Vibrations |
| 20g - 10 Hz … 2000 Hz IEC 60068-2-6 |
| Shock |
| Impulsive on 3 axes; 50g 11 ms IEC 60068-2-27 |
| Electromagnetic compatibility |
| 2014/30/EU Electromagnetic Compatibility (EMC) |
| Life |
| Virtually no wear through the use of permanent external magnet |
| IP Protection level |
| IP67 - IPX9K with female mating connector mounted AMP282090-1 (GRN-A version) and IP68 (GRN-F version) |
| Housing material |
| PBT |
