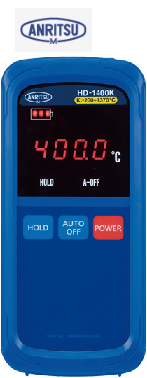

Handheld Thermometer HD-1400E / 1400K
Xuất sứ: JAPAN
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: ANRITSU VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. BảoMeasurement Range：E -200 to 800°C / K -200 to 1370°C
The thermometer stops measurement
by the HOLD key and holds the present readings.
The thermometer will turn the power off automatically after 5minutes.
| Model | HD-1400 | ||
| Display | LED | ||
| Waterproof specifications | Equivalent to IPX5 | ||
| Input connector | ASP | ||
| Input type | Thermocouple Input: Type E, K | ||
| Channel | 1ch | ||
| Signal source resistance | MAX.500ohm | ||
| Measurement Range | 1°C Resolution | E | -200 to 800°C |
| K | -200 to 1370°C | ||
| 0.1°C Resolution | E |
-104.9 to 504.9°C (Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.) |
|
| K |
-104.9 to 504.9°C (Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.) |
||
| Measurement Accuracy | 1°C Resolution | 0°C to | ± (0.1% of reading +1°C) |
| to 0°C | ± (0.5% of reading +1°C) | ||
| 0.1°C Resolution | 0°C to | ± (0.05% of reading + 0.2°C) | |
| to 0°C | ±0.5°C | ||
| Reference junction compensation accuracy | ±0.2°C at 25°C±10°C | ||
| Temperature Coefficient | ±0.01% of F/S per °C (F/S : full scale) | ||
| Operation Environment |
0 to 40°C, 0 to 80%RH (Non condensing) 32 to 104°F, 0 to 80%RH (Non condensing) |
||
| Storage Environment |
-20 to 50°C, 0 to 85%RH (Non condensing) -4 to 122°F, 0 to 85%RH (Non condensing) |
||
| Battery life | 150h | ||
| Power supply(Dry battery) | 4 AA Alkali Batteries | ||
| Power supply(AC power) | AC-Adaptor (Option) | ||
| Sampling rate | approx.300ms | ||
| Linearlizer | Digital Linearizer method (Compliant with IEC 60584-1 (2013)) | ||
| Dimensions(mm) | approx. 76(w)×167(H)×36(D) [Protruded parts excluded] | ||
| Weight | approx. 350g [Include Batteries] | ||
| Supplied accessories | Manual,Test report,Soft case, | ||
| Hand strap,4 AA Alkaline batteries | |||
| Optional accessories | - | ||
| Alarm Output | - | ||
| Analog Output | - | ||
| Compatible standards | CE Marking, RoHS | ||
