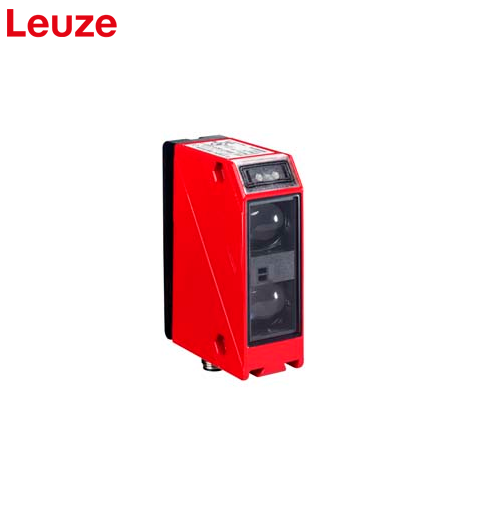

HRT 96M/P-1620-1800-41 Cảm biến quang Diffuse sensor Leuze

Xuất sứ: Germany

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: LEUZE VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

Model: HRT 96M/P-1620-1800-41 Cảm biến quang Diffuse sensor Leuze

Features:

  • Series96
  • Operating principleDiffuse reflection principle with background suppression
  • Special version: Heating
  • Operating range, white 90%0.1 ... 1.8 m
  • Operating range, gray 18%0.1 ... 1.7 m
  • Operating range, black 6%0.1 ... 1.5 m
  • Operating range limit, white 90%0.1 ... 2 m
  • Operating range limit, gray 18%0.1 ... 1.85 m
  • Operating range limit, black 6%0.1 ... 1.6 m
  • Light sourceLED, Infrared
  • Supply voltage UB10 ... 30 V, DC
  • Residual ripple0 ... 15 %, From UB
  • Open-circuit current0 ... 50 mA
  • Number of digital switching outputs2 Piece(s)
  • Switching frequency100 Hz
  • Type of connectionConnector
  • Thread sizeM12
  • MaterialMetal
  • No. of pins4 -pin
  • Ambient temperature, operation-40 ... 55 °C
