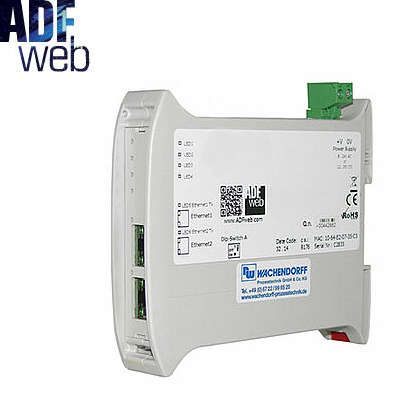

Bộ chuyển đổi  HD67871-A1-4A  ADFWeb

Specifications:
Ports: 1xEthernet; 4xIO-Link;
Ethernet protocol EtherNet/IP Slave
IO-Link protocol IO-Link Master
Data rates EtherNet/IP 10/100 Base-T Autosensing
Data rates IO-Link 4800 bps - 38400 bps - 230400 bps
EtherNet/IP Connector RJ45
IO-Lin Connector 4x-IO-Link A: 4way 3mm terminal block
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating temperature -40蚓/+85蚓 (-40蚌/+185蚌)
Dimensions 120x23x107 (LxWxH)
Weight 200g approx
Mechanical fixing DIN Rail montage
SOFTWARE: SW67871
ORDER CODE: HD67871-A1-4A
