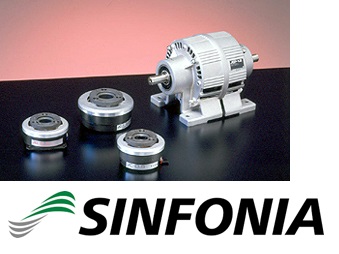

JC-2.5 Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

anhnghisonhcm

JC-2.5 Brake Sinfonia Vietnam ANSdanang

<SF-250/BMS-AG>
Type SF-250/BMS-AG
Static shaft torque Nm 7
Rated voltage DC-V 24
Power consumption W(at75°C) 7
Weight kg 0.79
Unit:mm





Power box Built-in transformer (using a Silicon rectifier) DMP-20/24A
Controller Rated excitation Contactless type FMP-10DA
2x over-excitation Contactless type EMP-20DB
4x over-excitation Contactless type Printed circuit type CSM-55DB
4x capacitor Over-excitation Contactless CMPH-100/4HA





Diameter direction
A 190
B 80
C 112
D1 190
D2 187
E 60
F 144
G 15
H 207
I 205.5
Shaft direction
L 504
M 200
N 80
O 60
P1 328
P2 176
R 123.5
Z 12
Shaft edge
Q 50
QK 42
d 25
b 8
h 7
t

4
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
