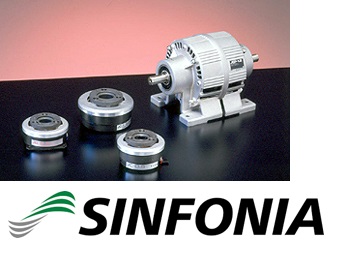

JC-20 Brake Sinfonia Vietnam ANSdanang

<JC-20>
Type JC-20
Static friction torque Nm 200
Rated voltage DC-V 24
Power consumption W(at75°C) 40
Weight kg 17.5
Unit:mm





Diameter direction
A 236
A1 140
B 219
D1 80
E 26
F 8.5
G 130
H 118
Shaft direction
L 106
M 60.5
N 3.2
O 2
P 5
Q 56.5
R 44.5
S 13
g 0.6
Mounting
SJ
Tap P.C.D
M10 115
Shaft hole
d 40
b 12
t
43.3 +0.2
0
Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/4HB
