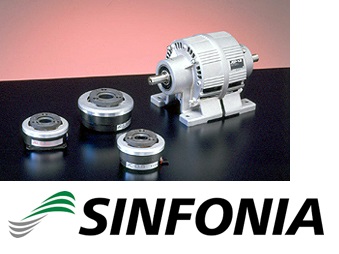

<JC-5>
Type JC-5
Static friction torque Nm 50
Rated voltage DC-V 24
Power consumption W(at75°C) 23
Weight kg 4.2
Unit:mm





Diameter direction
A 145
A1 87
B 135.6
D1 52
E 20
F 6.5
G 82
H 74
Shaft direction
L 73
M 43.5
N 2.6
O 1
P 4
Q 37
R 32
S 10
g 0.5
Mounting
SJ
Tap P.C.D
M8 70
Shaft hole
d 25
b 8
t
28.3 +0.2
0
Power box
DMP-63/24A
controller
EMP-70DB
CSM-55DB
CMPH-250/4HA
