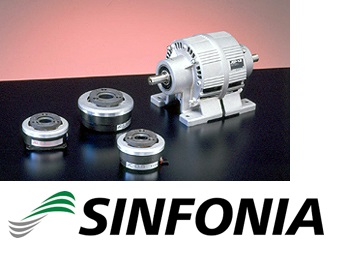

<JCC-20>
Type JCC-20
Static friction torque Nm 200
Rated voltage DC-V 24
Power consumption W(at75°C) 40
Weight kg 17.5
Unit:mm





Diameter direction
A 236
B 219
E 26
F 8.5
G 130
H 118
Shaft direction
L 108
M 60.5
N 3.2
O 2
P 41.5
Q 22
R 44.5
g 0.6
Mounting
K 8.5
KJ M8
Shaft hole
d 40
b 12
t
43.3 +0.2
0
Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/4HB
