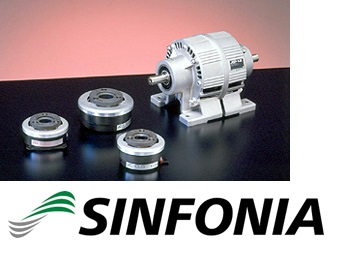

JCC-40 Brake Sinfonia Vietnam ANSdanang

<JCC-40>
Type JCC-40
Static friction torque Nm 400
Rated voltage DC-V 24
Power consumption W(at75°C) 50
Weight kg 32.5
Unit:mm





Diameter direction
A 288
B 271
E 30
F 10.5
G 160
H 145
Shaft direction
L 129
M 71
N 3.2
O 2
P 51.5
Q 25.5
R 52
g 0.6
Mounting
K 9.5
KJ M10
Shaft hole
d 50
b 16
t
54.3 +0.2
0
Power box
DMP-100/24A
High frequency
controller
EMP-70DB
CMPH-250/4HB
