SPECIFICATION
|

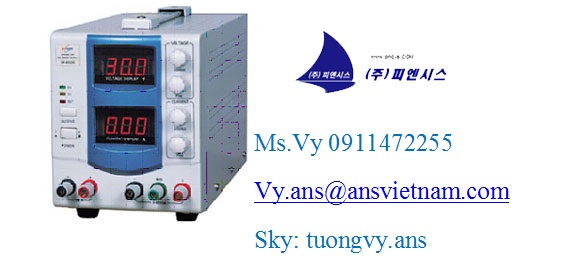

UP-6003D
|
|
|
OUTPUT VOLTAGE(CV)
|
0~60V, 5V(FIXED)
|
|
|
OUTPUT CURRENT(CC)
|
0~3A, 1A(FIXED)
|
|
|
5V FIX OUTPUT
|
RIPPLE
EJECTION |
≤2m Vrms.
|
|
Voltage accuracy
|
±1 %
|
|
|
OUTPUT
CURRENT |
1A
|
|
|
RIPPLE REJECTION
|
0.5mVrms.
|
|
|
LINE REGULATION
|
VOLTAGE
|
≤0.01%+2mV
|
|
CURRENT
|
0.02%+2mA
|
|
|
LOAD REGULATION
|
VOLTAGE
|
≤0.01%+2mV
|
|
CURRENT
|
5mA
|
|
|
VOLTAGE RESOLUTION
|
0.1V
|
|
|
CURRENT RESOLUTION
|
0.01A
|
|
|
TRANSIENT RECOVERY TIME
|
100 ㎲ (50%LOAD CHARGE,MINIMUM LOAD 0.5A)
|
|
|
DISPLAYER
|
VOLTAGE
|
3 ½ DIGITAL RANGE DIGITAL DISPLAY
|
|
CURRENT
|
3 ½ DIGITAL RANGE DIGITAL DISPLAY
|
|
|
PROTECTION
|
OVER VOLTAGE
|
FULL SCALE OF DC OUTPUT VOLTAGE + 9%
|
|
OVER CURRENT
|
FULL SCALE OF DC OUTPUT CURRENT + 9%
|
|
|
TEMPERATURE
|
ONLY HEAT SINK 85 ℃
|
|
|
OPERATING ENVIRONMENT
|
0~40 ℃,80%R.H.
|
|
|
AC POWER SOURCE
|
AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)
|
|
|
ACCESSORIES
|
INPUT POWER CORD, MANUAL , OUTPUT CABLE
|
|
|
WEIGHT (Kg)
|
7.2
|
|
|
DIMENSION(W*H*D ㎜)
|
130*165*330
|
|
