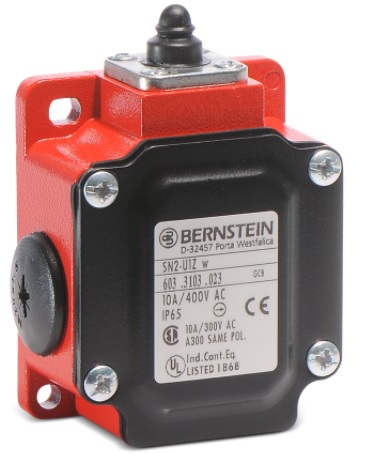

Limit switch Type SN2 , Bernstein Viet Nam
With its three cable entries and spacious connection area, the SN2 limit switch is the optimum solution for through-wiring or even branching off electrical circuits
*
- Protection class IP 65 to VDE 0470 T1
- Enclosure: Aluminium pressure die-casting
- Cover: Sheet aluminium
- Actuator can be repositioned by 4 x 90°
- Cable entry 3x M20 x 1.5
- Connection designation conforming to DIN EN 50013
- Metal actuators for high loads
- Graduated adjustment of AH lever
- Selectable direction-dependent contact-making of AH actuator (basic setting: contact-making both sides)
*
- Slow-action and snap-action contacts
- Versions: 1 NC / 1NO, 2 NC
- All NC contacts with
in the circuit diagram are positively opening contacts - Type: Zb (galvanically isolated changeover contact)
- Latching function on request
*
|
Art. No. |
Type |
|---|---|
|
3912440536 |
L-E-EINR.GC |
|
3913030537 |
SBW-E-EINR.DX/SN |
|
3913351913 |
AHS-E-EINR. SN2 |
|
6033103023 |
SN2-U1Z W |
|
6033117025 |
SN2-U1Z RIW |
|
6033121005 |
SN2-U1Z DGHW |
|
6033121007 |
SN2-U1Z HW |
|
6033127010 |
SN2-U1Z DGKW |
|
6033135002 |
SN2-U1Z AHS |
|
6033194022 |
SN2-SU1 LIW |
|
6033353016 |
SN2-SU1Z W |
|
6033367017 |
SN2-SU1Z RIW |
|
6033371004 |
SN2-SU1Z DGHW |
|
6033371006 |
SN2-SU1Z HW |
|
6033377011 |
SN2-SU1Z DGKW |
|
6033385018 |
SN2-SU1Z AHS |
---
