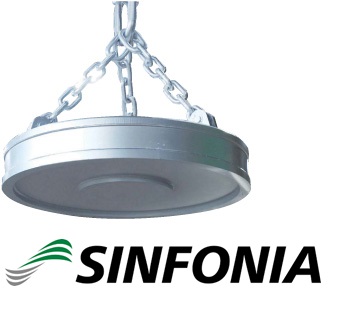

LMCS Series
■For slab handling, normal temperature material handling (up to 100℃)
| Items / Type | LMCS- 70HA |
LMCS- 90HA |
LMCS- 110HA |
LMCS- 120HA |
LMCS- 140HA |
LMCS- 160HA |
LMRF- 180 |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | A | mm | 700 | 900 | 1100 | 1200 | 1400 | 1600 | 1800 | |
| B | 890 | 910 | 1080 | 1280 | 1090 | 1640 | 1910 | |||
| C | 180 | 160 | 200 | 250 | 280 | 500 | 500 | |||
| D | 110 | 125 | 150 | 170 | 200 | 220 | 230 | |||
| E | 32 | 50 | 65 | 85 | 90 | 90 | 115 | |||
| Weight | approx. kg |
500 | 800 | 1400 | 1700 | 2500 | 3700 | 5000 | ||
| Current (before running) |
approx. A |
16 | 21 | 26 | 31 | 38 | 58 | 80 | ||
| Cold power consumption |
approx. kW |
3.5 | 4.7 | 5.8 | 6.8 | 8.4 | 12.7 | 17.5 | ||
| Transporting capacity per one lifting magnet |
approx. ton |
6 | 10 | 15 | 18 | 25 | 32 | 40 | ||
Rated voltage : 220V DC
Duty rating : E.D. 50%
LMCS Series
■For slab handling, high temperature material handling (up to 600℃)
| Items / Type | LMCS- 70HAS |
LMCS- 90HAS |
LMCS- 110HAS |
LMCS- 120HAS |
LMCS- 140HAS |
LMCS- 160HAS |
LMRF- 180S |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | A | mm | 700 | 900 | 1100 | 1200 | 1400 | 1600 | 1800 | |
| B | 970 | 990 | 1140 | 1360 | 1175 | 1720 | 2000 | |||
| C | 180 | 160 | 200 | 250 | 280 | 500 | 500 | |||
| D | 110 | 125 | 150 | 170 | 200 | 220 | 230 | |||
| E | 32 | 50 | 65 | 85 | 90 | 90 | 115 | |||
| Weight | approx. kg |
600 | 1000 | 1600 | 2000 | 3000 | 4300 | 5800 | ||
| Current (before running) |
approx. A |
12.3 | 16 | 25 | 30 | 38 | 42 | 53 | ||
| Cold power consumption |
approx. kW |
2.7 | 3.4 | 5.4 | 6.5 | 8.3 | 9.3 | 11.7 | ||
| Transporting capacity per one lifting magnet |
approx. ton |
6 | 10 | 15 | 18 | 25 | 32 | 40 | ||
Duty rating : E.D. 50%
LME Series
■For slab handling and turning over,
high temperature material handling (up to 600℃)
| Items / Type | LME- 7540 HAS |
LME- 10055 HAS |
LME- 15065 HAS |
LME- 20090 HAS |
LMES- 140110 HAS |
LMES- 200130 HAS |
||
|---|---|---|---|---|---|---|---|---|
| Dimensions | A | mm | 750 | 1000 | 1500 | 1900 | 1400 | 2000 |
| B | 400 | 550 | 650 | 900 | 1100 | 1300 | ||
| C | 450 | 475 | 520 | 660 | 490 | 600 | ||
| D | 420 | 530 | 700 | 1000 | 700 | 1000 | ||
| Weight | approx. kg |
500 | 900 | 1600 | 3300 | 2000 | 3500 | |
| Voltage (DC) | approx. V |
220 | 220 | 220 | 220 | 220 | 220 | |
| Current (before running) |
approx. A |
11 | 11 | 25 | 32 | 22.5 | 34 | |
| Cold power consumption |
approx. kW |
2.5 | 2.5 | 5.5 | 7.0 | 5.0 | 7.5 | |
| Transporting / turning capacity by one pair of lifting magnets |
approx. ton |
6 | 10 | 15 | 40 | 28 | 45 | |
