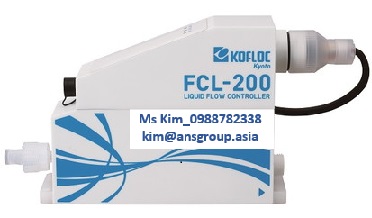

Lưu lượng kế_FCL-200_KOFLOC VIET NAM
Xuất sứ: JAPAN
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: KOFLOC VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. Bảo* Đặt điểm
・All areas in contact with liquid are made of Teflon, which enables constant flow control of clean fluid.
・The newly developed dedicated valve structure produces almost no particles.
・The high temperature type is capable of controlling fluids as high as 80℃.
・Digital control via RS232C is possible.
* Thông số
| * Applicable fluid | ： | Water, pure water, ultrapure water (For other fluids, please contact us.) | ||||||
| ・Flow range | ： | 0.4 - 2.0 L/min (Operating differential pressure 150 kPa min.) | ||||||
| ・Allowable fluid temperature | ： | 10 - 35℃ (normal temperature) (Optional: 10 - 80℃） | ||||||
| ・Measurement accuracy | ： | ±1%FS (at 25℃, pure water calibration) | ||||||
| ・Repeatability | ： | ±0.7%FS (at 25℃, pure water calibration) | ||||||
| ・Response | ： | Valve close → 100%F.S.: 2 sec. max., 100%F.S .→ valve close: 2 sec. max. | ||||||
| （at 25℃, pure water, differential pressure ＝ 150 kPa) | ||||||||
| ・Materials of areas in contact with liquid |
： | PTFE、PFA | ||||||
| ・Supply pressure | ： | 0.15 - 0.35 MPa (Pump pulsation ±50 kPa max.) | ||||||
| ・Proof pressure | ： | 0.6 MPa (at 25℃） | ||||||
| ・Process connection | ： | 3/8 inch （φ9.52×6.35） SUPER 300 P type joint made by NIPPON PILLAR PACKING |
||||||
| ・Dedicated power cable leng | ： | 3 m | ||||||
| ・Cable sheath | ： | PVC | ||||||
| ・Structure | ： | Equivalent to IP64 (Electrical part) | ||||||
| ・Valve structure | ： | Normally open | ||||||
| ・Ambient temperature | ： | 0 - 50℃ (no condensation) | ||||||
| ・Ambient humidity | ： | 10 - 85%RH (no condensation) | ||||||
| ・Installation posture | ： | Free (Horizontal installation recommended) | ||||||
| ・Weight | ： | Approx. 1.3 kg |
||||||
