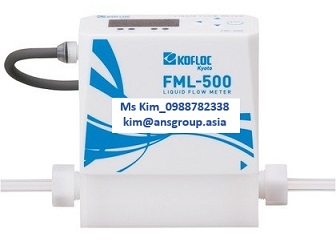

Lưu lượng kế_FML-500
Xuất sứ: JAPAN
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: KOFLOC VIET NAM
Ứng dụng sản phẩm: Automotive
Hotline
anhnghisonhcm* Đặt điểm:
・Clean structure, with a new PFA material for the parts in contact with the liquid.
・Straight flow path ensures low pressure loss, making mainte-nance easier.
・Small, lightweight and compact.
・With its built-in display, flow rates can be measured by just con-necting to a DC24V power source.
・High viscosity liquids can be measured. (*Please contact us for details.)
* Thông số
| Applicable liquids | Water, purified water (no bubbles) *Please contact us for other liquids. |
||
| Fluid sonic velocity | 1300 m/s to 1600 m/s | ||
| Fluid temperature range | 15 to 50℃ | ||
| Measurement range | 0 to 5 L/min | ||
| Accuracy | Refer to Table 1. | ||
| Material in contact with liquid | New PFA | ||
| Proof pressure | 0.5 MPa (at 23℃) | ||
| Process connection | 6 mm tube end | ||
| Dedicated cable length | 3 m | ||
| Cable sheath | PVC | ||
| Structure | IP64 or equivalent | ||
| Ambient temperature | 5 to 50℃ (no condensation allowed) | ||
| Ambient humidity | 10 to max. 85% RH (no condensation allowed) | ||
| Mounting position | Vertical, horizontal, diagonal | ||
| Weight | 200 g (main unit) | ||
