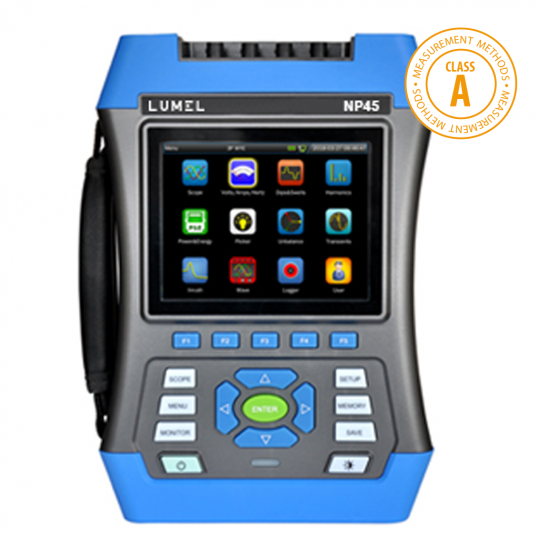

Mr. Bảo- 5.6" TFT color screen. 640 x 480 pixel.
- Waveform real-time display (4 voltages/4 currents).
- Half cycle RMS measurement (voltage and current).
- Measurement of TRMS currents up tp 6000 A (with additional probes mode).
- Measurement in 1-phase and 3-phase systems (3 - and 4-wire).
- Measurement of voltage. current. harmonics. power. energy. inrush current. flicker and other.
- Graphical presentation of data in a waveform and vector diagram.
- Record of events: dips. swells. overvoltages.
- Power quality according to EN-50160 standard or user-defined limit.
- Registration of user-defined parameters in the 32GB internal memory (registration time from 2 h up to 1 year).
- Ethernet interface for remote operation of the analyzer.
- USB Host to move archive data and screenshots to an external USB memory.
- Safety standards: EN 61010-1. CAT III 1000V / CAT IV 600V.
- The analyser set: analyzer. voltage tests leads aligator clips (5x). DC power adapter. CD with software. user’s manual.
