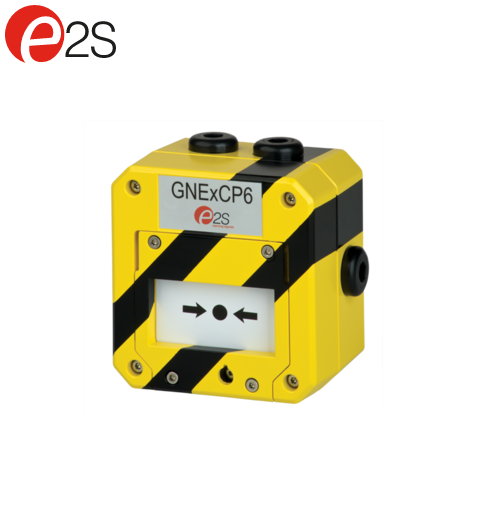

Nút nhấn báo động (Manual Call Point) - E2S

Model: GNEXCP6B-BG

Specification:

GNExCP6B:

II 2G Ex d e mb IIC T4 Gb
II 2D Ex t IIIC T80°C Db
IP66

Ambient:

Ta = -40°C to +50°C/+55°C [-40° to +122°F/+131°F

Ingress protection:

IP66

Housing material:

GRP – glass reinforced polyester
(UV stable)

Colour:

RAL3000 Red (others available on request)

Cable entries:

2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries.

Stopping plugs:

2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional

Terminals:

6 × 4.0mm² / 8 × 2.5mm²

Test:

Test key facility

Weight:

1.2Kg/2.64Ibs

Note:

For applications that do not require monitoring
resistors, diodes or inidcator LED’s please see
the GNExCP6A-BG version.
Data sheet reference: 1.3.04.

The GNExCP6B call point can contain a maximum of two resistor or diode E.O.L. or series modules. The LED indicator can be combined with an EOL resistor or diode.
