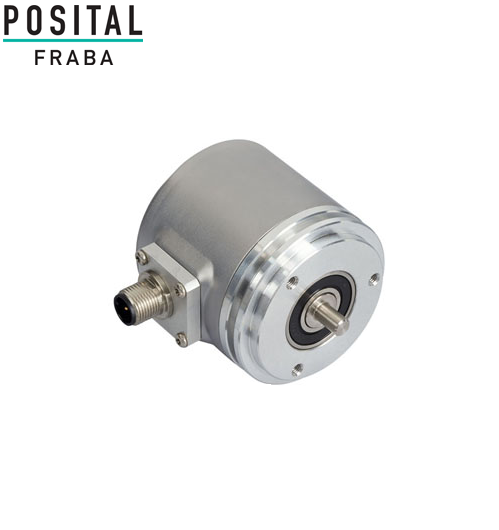

Model: OCD-S401G-0016-S100-PRQ Bộ mã hóa vòng quay tuyệt đối/Absolute Rotary Encoder/ Posital Fraba

Interface

Interface

SSI with Button and LEDs

Diagnostics

OptoAsic, Memory, LED

Manual Functions

Preset via push button and cable or connector

Interface Cycle Time

≥ 25 µs

Outputs

Output Driver

RS422

Electrical Data

Supply Voltage

4.5 – 30 VDC

Power Consumption

≤ 1.5 W

Start-Up Time

< 1 s

Clock Input

RS 422, via Optocoupler

Clock Frequency

100 kHz – 2 MHz

Reverse Polarity Protection

Yes

Short Circuit Protection

Yes

EMC: Emitted Interference

DIN EN 61000-6-4

EMC: Noise Immunity

DIN EN 61000-6-2

MTTF

16.2 years @ 40 °C

Sensor

Technology

Optical

Resolution Singleturn

16 bit

Accuracy (INL)

±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit)

Sense Signal (Default)

Clockwise shaft movement (front view on shaft)

Code

Gray

Environmental Specifications

Protection Class (Shaft)

IP65

Protection Class (Housing)

IP65

Operating Temperature

-40 °C (-40 °F) - +85 °C (+185 °F)

Humidity

98% RH, no condensation

Mechanical Data

Housing Material

Steel

Housing Coating

Wet coating (RAL 9006 White Aluminium) + Cathodic corrosion protection (>720 h salt spay resistance)

Flange Type

Synchro, ø 58 mm (S)

Flange Material

Aluminum

Shaft Type

Solid, Length = 20 mm

Shaft Diameter

ø 10 mm (0.39")

Shaft Material

Stainless Steel V2A (1.4305, 303)

Max. Shaft Load

Axial 40 N, Radial 110 N

Minimum Mechanical Lifetime
(10^8 revolutions with Fa/Fr)

420 (20 N / 40 N), 145 (40 N / 60 N), 100 (40 N / 80 N), 55 (40 N / 110 N)

Rotor Inertia

≤ 30 gcm² [≤ 0.17 oz-in²]

Friction Torque

≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F)

Max. Permissible Mechanical Speed

≤ 12000 1/min

Shock Resistance

≤ 100 g (half sine 6 ms, EN 60068-2-27)

Permanent Shock Resistance

≤ 10 g (half sine 16 ms, EN 60068-2-29)

Vibration Resistance

≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6)

Length

56,7 mm (2.23")

Weight

295 g (0.65 lb)
