Thiết bị Leuze giá tốt tham khảo thêm

Origin

Hãng xuất sản

Model và mô tả

100% Germany Origin

Leuze Vietnam

PRK 95/44 L.4
 Polarized retro-reflective photoelectric sensor, 0 - 3m range, LED Red, M12 4-pin connector, 10 - 30VDC 2 x PNP outputs 17 mm x 66 mm x 35 mm -25 ... 60 °C IP67 Multiturn potentiometer

100% Germany Origin

Leuze Vietnam

Replaced by: ODS9L2.8/LAK-450-M12
 (ODSL 9/C6-450-S12) Optical distance sensor, Laser class 2, Red, Measurement range 50 ... 450 mm, 18-30VDC, Teach input, Activation input, Deactivation input, Trigger, Push-pull output, current, IO-Link, M12 5pin connector, -20 ... 50 °C, IP67, Glass lens

100% Germany Origin

Leuze Vietnam

KDSU-M12-5A-M12-5A-P1-003-25X
 Interconnection cable to use if the superseded ODSL9xxx is replaced by the new ODS9xxx.
 Due to IO-Link standards the analogue output must now be on pin 2, therefore the teach input have moved to pin 5.
 M12 5-pin female to M12 5-pin male. 300mm long

100% Germany Origin

Leuze Vietnam

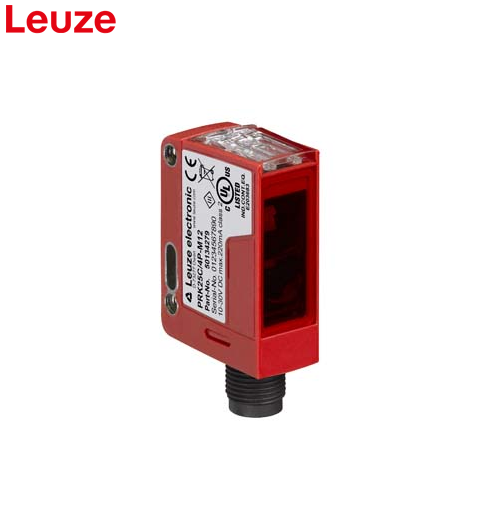

Replaced by: PRK25C.A2/4P-M12
 (PRK 25/66.41-S12) Polarized retro-reflective photoelectric sensor for detection of highly transparent bottles, 15x42.7x30mm, Autocollimation, range limit 0 ... 6 m, 10-30VDC, 2 x PNP outputs, M12 4pin connector, Multiturn potentiometer, -40 ... 60 °C, IP 67, IP 69K

100% Germany Origin

Leuze Vietnam

Replaced by: PRK25C.A2/2N-M12
 (PRK 25/66.41-S12) Retro Reflective for detection of highly transparent bottles 15 mm x 42.7 mm x 30 mm
 Autocollimation optics

100% Germany Origin

Leuze Vietnam

KRTG 20M/P-50-0005-S12
 Contrast Scanner, LED, RGB, Operating range 0.045 ... 0.055 m, 12-30VDC, Static 2-point teach input, Transistor, PNP Light/dark reversible output, M12 5pin connector, -25 ... 60 °C, IP67, Autocollimation, Synchronization input, Time function

100% Germany Origin

Leuze Vietnam

HRT 46B/66-S12
 Diffuse infrared P.E. sensor with mech. background suppression 0-2500mm range
 M12x4pin connection 10-30VDC supply complimentary Push/Pull outputs plastic housing IP69k A2LS ambient light suppression

100% Germany Origin

Leuze Vietnam

RK 72/4-200 L.2
 Energetic diffuse reflection light scanner for detection of labels on juice bottles 12-30V DC PNP light/dark switching by reversing polarity M12 4Pin.

100% Germany Origin

Leuze Vietnam

PRKL 8/24.91-S12
 Polarised Retro-reflective with 0-21m range with M12 connector/ 5-pin connection 10 - 30V DC supply PNP/NPN outputs Laser Light Source Laser beam can be focused for precision accuracy

100% Germany Origin

Leuze Vietnam

Replaced by: PRK46C.1/4P-M12
 (PRK 46B/44.01-S12) Polarized retro-reflective photoelectric sensor, range limit 0.1 ... 30 m, LED, Red, 10-30VDC, PNP Light + PNP Dark switching, M12 4pin connector, 270° potentiometer, -40 ... 60 °C, IP67/IP69K

100% Germany Origin

Leuze Vietnam

Replaced by: PRK3C.T3/4T-5000
 (PRK 3B/6.42,5000) Polarized retro-reflective photoelectric sensor, Detection of highly transparent bottles, range limit 0...3.6m, LED red, 10-30VDC, PNP light switching, 5M cable, Teach button, -40 ... 55 °C, IP67/69K, Autocollimation

100% Germany Origin

Leuze Vietnam

Replaced by: PRK3C.T3/6T-M8
 (PRK 3B/6.42-S8) Polarized retro-reflective photoelectric sensor, Detection of highly transparent bottles, Autocollimation, range limit 0... 3.6m, LED Red, 10-30VDC, 1 x Push-pull output, M8 4pin connection, Teach button, -40 ... 60 °C, IP 69K, IP 67

100% Germany Origin

Leuze Vietnam

BT 3.1
 BT 3.1 consists of 2 Screws & Frame Support Does not include the bracket (Only
 available in Pack of 10)

100% Germany Origin

Leuze Vietnam

HT46CI/4P-M12
 Diffuse sensor with background suppression, Operating range limit 0.005 ... 3 m, LED, Infrared, 10-30VDC, 1 x PNP Light switching + 1 x PNP Dark switching, M12 4pin connector, Multiturn potentiometer, -40 ... 60 °C, IP 67/IP 69K

100% Germany Origin

Leuze Vietnam

PRK 18/4 DL.4
 Autocollimated retro-reflective P.E. sensor for clear media detection 0-3m range M12x4pin connection 10-30VDC supply PNP output dark/light switching selectable by wiring configuration 12-turn sensitivity adjustment
