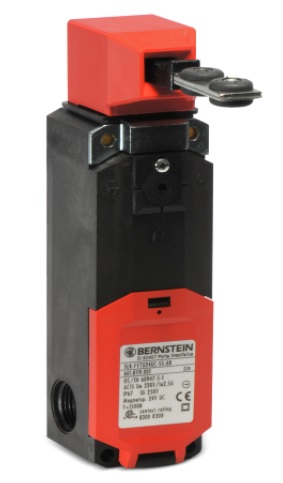

Plastic-bodied, with interlocking, Type SLK , Bernstein Viet Nam
SLK safety position switches with interlock function ensure that safety gates, safety doors and other protective guards remain closed for as long as a hazardous situation exists.
*
- Rotary actuating head (4x 90°) as well as horizontal and vertical actuation ensure complete flexibility in use
- Compact design with short overall size of only 170 mm
- Innovative installation with spring-loaded terminals
- Interlock facility is integrated in the switch enclosure
- Locking principle
- Spring force (closed-circuit current)
- Magnetic force (working current)
- Anti-tamper facility due to triple coding
*
- Protection class IP 67
- Two independent safety circuits ensure reliable integration
- With two contacts, circuit 1 monitors the actuator
- With two contacts, circuit 2 monitors the interlock
- Two different operating voltages for universal integration:
- 24 V AC / DC or 110 V / 230 V AC
- Function conforming to GS ET 19, EN 60 204-1, EN 60 947-1 and EN 60 947-5-1
- Cable entry 3 x M20 x 1.5
---
