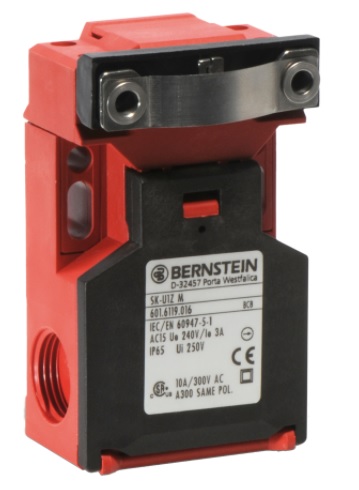

Plastic-bodied safety switch, Type SK , Bernstein Viet Nam
The SK safety position switch is an industry standard and can be used in virtually any application.
- Particularly suitable for personal protection applications
- Design safety features conforming to VDE 0660 T200 and IEC 60947-5-1
- Test regulations GS-ET 15
- Protection class IP 65 to VDE 0470 T1
- Different actuating forces
- Enclosure and cover PA 6, self-extinguishing (UL-94-V0)
- Actuators can be repositioned by 180°
- Two actuator openings which makes horizontal and vertical operation possible
- Cable entry 3 x M20 x 1.5
*
- Slow-action contact
- Versions: 1 NC
- All NC contacts with
in the circuit diagram are positively opening contacts - Type: Zb (galvanically isolated changeover contact)
- Anti-tamper facility due to coding
---
