Cảm biến vị trí TRS-0025 Gefran

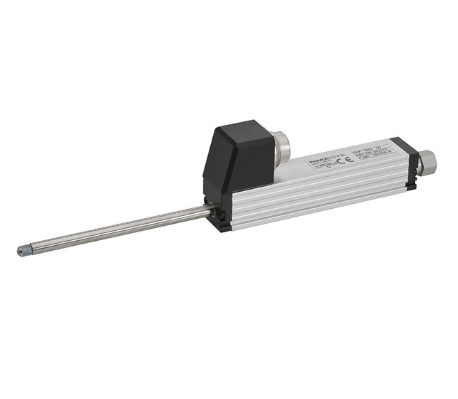

  • Product Type : Spring-Loaded Linear Potentiometer Position Sensor 25mm 1kOhm

  • Linearity (±) : 0.2 %

  • Resistance : 1 kOhm

  • Tolerance : 20 %

  • Linear Position Sensor Output Type : Voltage Divider

  • Stroke Length - Electrical : 25 mm

  • Stroke Length - Mechanical : 30 mm

  • Operating Voltage Max. : 42 V

  • Displacement Speed : 10 m/s

  • Termination Type : Connector, 5-Pin

  • Mounting Type : Clamp Mount

  • Series : TRS Series

  • Protection Rating : IP40

  • Operating Temperature Min. : -30 °C

  • Operating Temperature Max. : 100 °C
