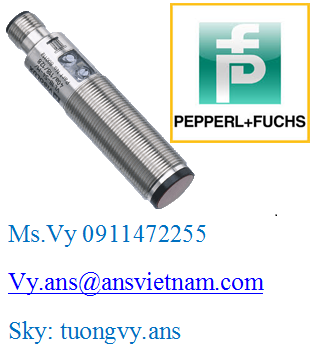

Retroreflective sensor VL18-54-M-LAS/40a/118/128 P+F Việt Nam Anh Nghi Sơn
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: PEPPERL + FUCHS VIET NAM
Mr. Bảo| Product Description | ||
|---|---|---|
| Retroreflective sensor with polarization filter | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 18 m | |
| Threshold detection range | 20 m | |
| Light source | laser diode | |
| Light type | modulated visible red light | |
| Polarization filter | yes | |
| Laser nominal ratings | ||
| Laser class | 1 | |
| Wave length | 655 nm | |
| Diameter of the light spot | 150 mm x 100 mm at a distance of 12 m | |
| Angle of divergence | 1 ° | |
| Functional safety related parameters | ||
| MTTFd | 700 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED yellow, light with free light beam , flashes when falling short of the stability control , OFF when light beam is interrupted | |
| Control elements | Sensitivity adjuster, light/dark switch | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC , class 2 | |
| Output | ||
| Switching type | light/dark on, switchable | |
| Signal output | Push-pull (4 in 1) output short-circuit protected overvoltage protected | |
| Compliance with standards and directives | ||
| Directive conformity | EMC Directive 2004/108/EC | |
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
| Laser class | IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
