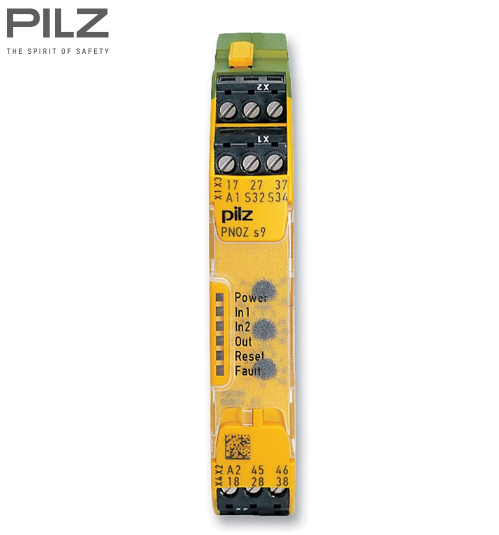

Rơ le an toàn (Safety Relay) - Pilz

Product no.: 750109

Technical details:

Certifications:

CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC

Application options:

Instantaneous contact expansion, Delayed contact expansion, Safe delay-on de-energ. timer, Safe delay-on energisation timer, Safe pulsing timer

Operating modes:

Single-channel

Standards:

EN 60204-1, EN 62061, VDE 0113-1

Supply voltage (V):

24,0

Supply voltage type:

DC

Terminal style:

Plug-in

Terminal type:

Screw terminal

Number of delayed safety contacts:

3

Safety contact delay type:

Delay-on de-energisation, delay-on energisation, pulsing

Number of delayed auxiliary contacts:

1

Auxiliary contact delay type:

pulsing, delay-on energisation, Delay-on de-energisation

Selectable times:

0,04 s, 0,10 s, 0,20 s, 0,30 s, 0,40 s, 0,50 s, 0,60 s, 0,70 s, 0,80 s, 1,00 s, 1,50 s, 10,00 s, 100,00 s, 12,00 s, 120,00 s, 14,00 s, 140,00 s, 15,00 s, 150,00 s, 16,00 s, 160,00 s, 180,00 s, 2,00 s, 2,50 s, 20,00 s, 200,00 s, 210,00 s, 240,00 s, 25,00 s, 3,00 s, 3,50 s, 30,00 s, 300,00 s, 35,00 s, 4,00 s, 40,00 s, 5,00 s, 50,00 s, 6,00 s, 60,00 s, 7,00 s, 70,00 s, 8,00 s, 80,00 s, 90,00 s

Stop category:

0/1

Max. current at DC13 I (6 cycles/min):

5.0 A

Max. current at AC15:

5.0 A

Width dimension:

17.5 mm

Height dimension:

98.0 mm

Depth dimension:

120.0 mm

Gross weight:

185 g

Net weight:

175 g

Ambient temperature:

-15 - 55 °C
