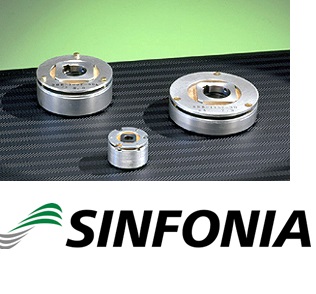

SBR-112-0160EZ Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

SBR-112-0160EZ Brake Sinfonia Vietnam ANSdanang

<SBR-82-0100EZ>
Type SBR-82-0100EZ
Static friction torque Nm 10
Rated voltage DC-V 24
Power consumption W(at20°C) 17.7
Weight kg 1
Unit:mm





Response Characteristics



Type SBR-82-0100EZ
Armature pull-in time　　　　ta (ms) 100
Armature release time　　　　tar (ms) 30



Allowable workload / Max speed / Inertia J



Type SBR-82-0100EZ
Allowable workload (J) Per single time 500
Total workload 5.0×105
Max speed (r/min) 5000
J (kgm2) 3.7×10-5
Number of stops Normal holding (0r/min) 2000000
Emergency braking 200
Heat resistance class H
Initial armature pull-in voltage (at20°C) Less than DC15
Initial armature release voltage (at20°C) More than DC1V
Mounting direction Free
