Anh Nghi Sơn là nhà phân phối độc quyền thiết bị hãng Posital Fraba (Hà Lan) tại thị trường Việt Nam. Postial Fraba chuyên nghiên cứu và sản xuất bộ mã hóa, cảm biến tuyến tính,….

Các sản phẩm của Postial Fraba, Anh Nghi Sơn đã và đang cung cấp tại thị trường Việt Nam gồm có: Incremental Encoders, Absolute Encoders, Kit Encoders, Linear Sensors, Inclinometers, Wiegand Sensors,…

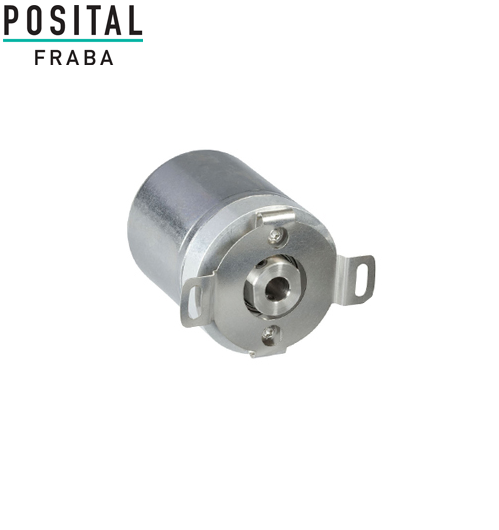

Model: UCD-IPT00-XXXXX-ASS0-CAW/ Bộ mã hóa vòng quay (IXARC Incremental Encoder)/ Posital Fraba

Interface



Interface

Programmable Incremental

Programming Functions

PPR (1-16384), Output, Counting Direction

Configuration Tool

UBIFAST Configuration Tool (Version ≥ 1.6.3)



Outputs



Output Driver

RS 422 (TTL)

Output Voltage High Level Push-Pull (HTL)

> 4 V @ 4.75-9 V Supply Voltage
> V-3 V @ 9-30 V Supply Voltage

Output Voltage Low Level Push-Pull (HTL)

< 0.5 V

Output Voltage High Level RS422 (TTL)

> 4 V

Output Voltage Low Level RS422 (TTL)

< 0.5 V

Maximum Frequency Response

1 MHz

Maximum Switching Current

50 mA per Channel



Electrical Data



Supply Voltage

4.75 – 30 VDC

Current Consumption

≤140mA @ 5V DC, ≤70mA @ 10V DC, ≤40mA @ 24V DC

Power Consumption

≤ 1.0 W

Start-Up Time

< 1 s

Min. Load Resistance

120 Ω

Reverse Polarity Protection

Yes

Short Circuit Protection

Yes

EMC: Emitted Interference

DIN EN 61000-6-4

EMC: Noise Immunity

DIN EN 61000-6-2

MTTF

280 years @ 40 °C



Sensor



Technology

Magnetic

Accuracy (INL)

±0.0878° (≤ 12 bit)

Duty Cycle

180° ± 27° (Speed > 100RPM)

Phase Angle

90° ± 14° (Speed > 100RPM)



Environmental Specifications



Protection Class (Shaft)

IP65

Protection Class (Housing)

IP65

Operating Temperature

-30 °C fixed (-22 °F), -5 °C flexible (+23 °F) - +80 °C (+176 °F)

Humidity

98% RH, no condensation



Mechanical Data





Mechanical Data



Housing Material

Steel

Housing Coating

Cathodic corrosion protection (>720 hrs salt spray resistance)

Flange Type

Blind Hollow, ø 36 mm (A)

Flange Material

Aluminum

Shaft Type

Blind Hollow, Depth = 18 mm

Shaft Diameter

ø 9.52 mm (3/8")

Shaft Material

Stainless Steel V2A (1.4305, 303)

Friction Torque

≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F)

Max. Permissible Mechanical Speed

≤ 6000 1/min

Shock Resistance

≤ 100 g (half sine 6 ms, EN 60068-2-27)

Permanent Shock Resistance

≤ 10 g (half sine 16 ms, EN 60068-2-29)

Vibration Resistance

≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6)

Length

54,2 mm (2.13")

Weight

405 g (0.89 lb)

Maximum Axial / Radial Misalignment

Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm



Electrical Connection



Connection Orientation

Axial

Cable Length

1 m [39"]

Wire Cross Section

0.14 mm² / AWG 26

Material / Type

PVC

Cable Diameter

6 mm (0.24 in)

Minimum Bend Radius

46 mm (1.81") fixed, 61 mm (2.4") flexing



Certification



Approval

CE



Product Life Cycle



Product Life Cycle

New



Connection Plan



SIGNAL

CABLE COLOR

A

Green

/A

Yellow

B

Gray

/B

Pink

Z

Blue

/Z

Red

Power Supply

Brown

GND

White

Shielding

Shield
