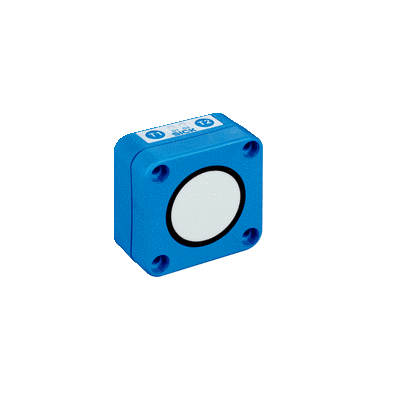

Cảm biến siêu âm Type: UC30-21416B Part no.: 6068452 Sick

Supply voltage Vs DC 9 V ... 30 V 1)
Power consumption ≤ 1.2 W 2)
Initialization time < 380 ms
Design Rectangular
Housing material

Plastic (PBT/PET)

Ultrasonic transducer: polyurethane foam, glass epoxy resin

Connection type Male connector, M12, 5-pin
Indication 2 x LED
Weight 180 g
Sending axis Straight
Dimensions (W x H x D) 62.2 mm x 62.2 mm x 32.7 mm
Enclosure rating IP65 / IP67
Protection class III
