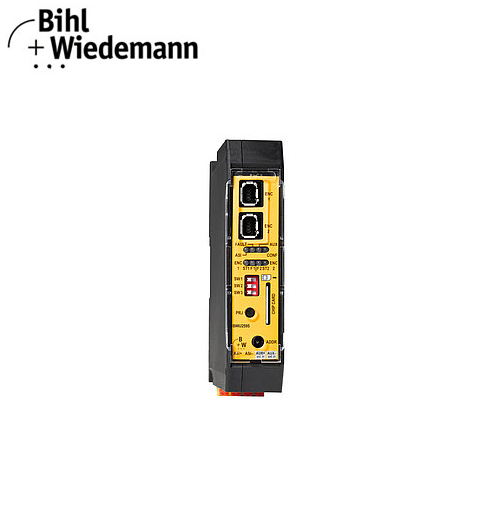

Model: BWU2595 ǀ ASi Speed Monitor Modular

Features:

Type: Speed Monitor Modular

Model: Speed Monitor for encoders

Protection rating: IP20

Safe Monitoring: speed

Encoder signal/Sensor signal : HTL or sensors/initiators (24V)

Number of monitored axes: up to 2 independent axes

Inputs Safety, SIL 3, Cat. 4: -

Outputs Safety, SIL 3, cat. 4: -

Encoder/Sensor connection: Mini IO

Diagnostic and configuration interface: via ASi

ASi connection: clamps

ASi address: depending on configuration
