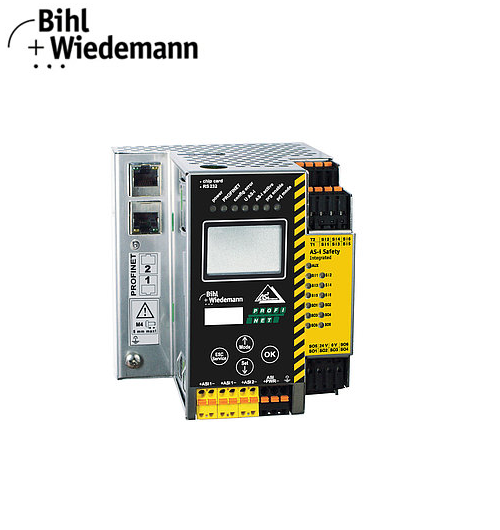

Model: BWU3274 ǀ ASi-3 PROFINET Gateway


Type: Safety, PROFINET

ASi-5/ASi-3: ASi-3 compatible

Model: Gateway with integrated Safety Monitor

Protection rating; IP20

Inputs Safety, SIL 3, Cat. 4: 3 x 2 channels

Inputs digital, EDM: 6

Inputs safety, expandable to: max. 62 x 2 channels, max. 1922 in max. configuration

Outputs Safety, SIL 3, cat. 4: 6 release circuits, 6 x electronic safe outputs

Safety outputs, independent according to SIL 3, expandable to: max. 32, max. 992 in max. configuration

Safety communication: Safe Link

Fieldbus interface: PROFINET

Number of ASi networks, number of ASi Master: 2 ASi networks, 2 ASi Masters

1 power supply, 1 gateway for 2 ASi networks, inexpensive power supplies: yes, max. 4 A/ASi network

Diagnostic and configuration interface: Ethernet fieldbus + RS 232

Recognition of duplicate ASi addresses: yes

ASi fault detector: yes

Programming in C: optional
