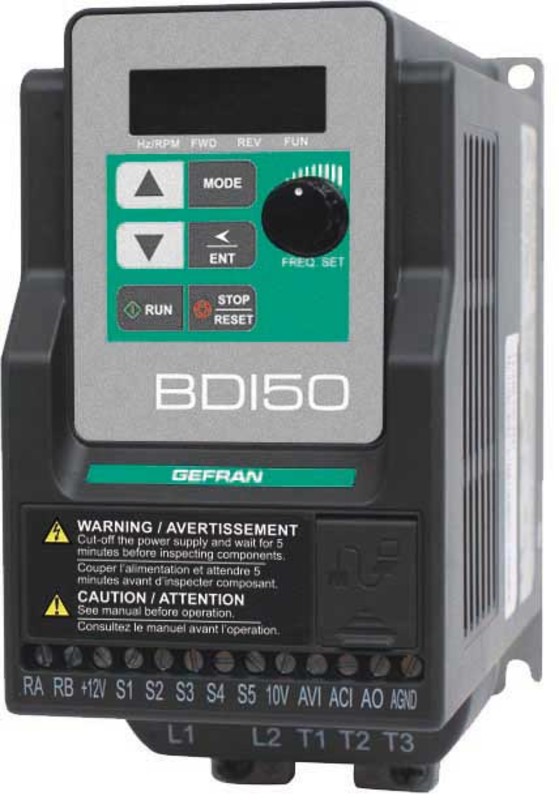

BDI50 Compact v/f & sensorless inverter

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: GEFRAN VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

Description

BDI50 - Compact V/f and sensorless inverter, from 0.4kW up to 11 kW

* Mains supply:

- 1 x 200…240Vac, 50/60Hz (-2M models)

- 3 x 200…240Vac, 50/60Hz (-2T models)

- 3 x 380…480Vac, 50/60Hz (-4 models)

* Motor ratings from 0.4kW (0.5Hp) to 11kW (15Hp)

* Certifications: CE, cULus

Features:

  •     Motor type: Asynchronous Motor
  •    Regulation control modes: V/f, Sensorless (SLV)
  •     Max Output frequency 599Hz
  •     EMC Filter integrated (models -2M and -4)
  •     RFI-switch for IT mains
  •     Dynamic Braking Module integrated on models -4
  •     Overload 150%/1min
  •     8 preset speeds
  •     Multilanguage programming software
  •     Integrated programming keypad
  •     2 Analog inputs: AVI: 0~10V/2~10V, ACI: 0~20mA / 4~20mA
  •     1 Analog output: 0-10V
  •     5 Digital Inputs (PNP / NPN depending on models)
  •     Digital Outputs: 1, relay
  •     Motor protection input: by PTC (AVI)
  •     RS485 Serial Line (Modbus RTU/ASCII protocol)
  •    Integrated Bacnet protocol
  •     Interfacing with the most common fieldbus through communication modules for ProfiBus, CANopen, DeviceNet, TCP-IP
  •      IP20 protection degree
