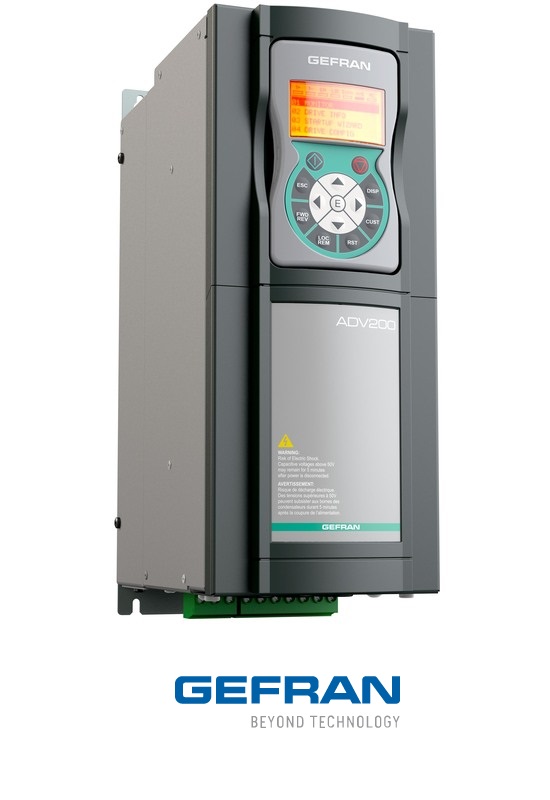

ADV200 Field-Oriented vector inverter

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: GEFRAN VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

Description

Field-oriented vector inverter, from 0.75kW up to 1.65MW

* Mains supply:
- 3 x 380…480Vac, 50/60Hz (-4 models )
- 3 x 690Vac, 50/60Hz (-6 models )
- 450…750Vdc (-DC-4 models)
- 600…1120Vdc (-DC-6 models)

* Motor ratings from 0.75kW (1Hp) to 1.65MW (2200Hp)
* Certifications: CE. UL, cUL

Features:

  • Motor type: asynchronous and synchronous motors
  • Regulation control modes: FOC with Speed feedback, FOC open loop, V/F
  • Max Output frequency 500Hz
  • DC Choke integrated up to 132kW
  • EMC Filter integrated
  • Dynamic Braking Module integrated up to 55kW
  • Overload according with IEC146 Class 1 and Class 2
  • Heavy duty and Light duty overload management
  • Up to 4 options on board
  • Safety Stop card in accordance with EN 954-1 (Cat.3)
  • Multilanguage programming software (5 languages)
  • Advanced PLC according to the IEC61131-3 Standard
  • Basic PLC Integrated
  • Alphanumeric programming keypad
  • 2 Bipolar Analogue Inputs  (Voltage/Current)
  • 2 Bipolar Analogue Outputs (1: Voltage/Current, 1: Voltage)
  • 6 Digital Inputs (PNP / NPN)
  • 2 Digital Outputs (PNP / NPN)
  • 2 Relay Outputs, single contact
  • RS485 Serial Line (Modbus RTU protocol)
  • Interfacing with the more common field bus: ProfiBus, CANopen, DeviceNet, EtherNet real.time GDNet, EtherCAT, EtherNet/IP, Profinet
  • IP20 protection degree as standard
