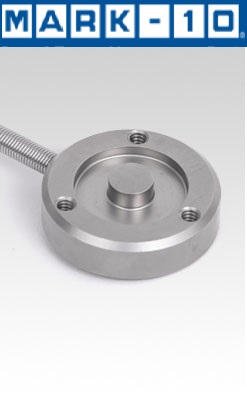

Compression Force Sensor Series R02_MR02-100/ MR02-10000/MR02-500
Xuất sứ: USA
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: MARK-10 VIET NAM
Ứng dụng sản phẩm: Automotive
Bích Ngà * Đặt điểm
- Member of the Plug & Test™ family of interchangeable sensors and indicators
- Small size Stainless steel construction
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Accuracy:
± 0.5% of full scale + indicator
| Model | lbF | ozF | gF | kgF | N | kN |
| MR02-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | - |
| MR02-200 | 200 x 0.1 | 3200 x 2 | - | 100 x 0.05 | 1000 x 0.5 | 1 x 0.0005 |
| MR02-500 | 500 x 0.2 | 8000 x 5 | - | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
| MR02-1000 | 1000 x 0.5 | 16000 x 10 | - | 500 x 0.2 | 5000 x 2 | 5 x 0.002 |
| MR02-2000 | 2000 x 1 | 32000 x 20 | - | 1000 x 0.5 | 10000 x 5 | 10 x 0.005 |
| MR02-5000 | 5000 x 2 | - | - | 2500 x 1 | 25000 x 10 | 25 x 0.01 |
| MR02-10000 | 10000 x 5 | - | - | 5000 x 2 | 50000 x 25 | 50 x 0.02 |
