Đặt điểm

  • Selectable speed setting
  • Right and left travel limit switches
  • Adjustable, removable control panel may be mounted to the left or right end of the frame
  • Password protection of test parameters
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
  • USB output of force or force vs. travel
  • Compact footprint, suitable for crowded work benches
  • Ergonomic design, with smart, clean cable management
  • Integrated electronics assembly, easily removed and transported for service
  • Adjustable mounting plate with T-slot base
Model/Part No. Description

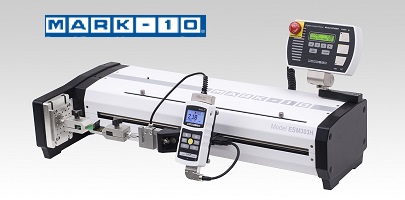

ESM303H Motorized test stand,110V*
ESM303-001-1 Frame extension for ESM303H, 6"
ESM303-001-2 Frame extension for ESM303H, 12"
ESM303-001-3 Frame extension for ESM303H, 24"
ESM303-004-1 Control panel tabletop mounting kit, ESM303H
09-1252 Test stand-indicator interface cable, ESM303H
09-1158 USB cable
AC1064 Load cell hardware kit
09-1089-1 Power cord, 110V US (included with ESM303H)
09-1089-2 Power cord, 220V EUR (included with ESM303HE)
09-1089-3 Power cord, 220V UK (included with ESM303HU)
09-1089-4 Power cord, 220V AUS (included with ESM303HA)
Controller Options
AF008 FollowMe™
AF009 Travel measurement
AF010 PC control
AF011 Travel limits
AF012 Overload protection
AF013 Auto return
AF014 Cycling
AF016 Independent left / right speeds
AF017 Low speed range extension
AF018 High speed range extension
AF019 Break detection
AF020 Load holding
AF021 Preload
AF022 Profiles
AFCOMP-H Complete options package for ESM303H
