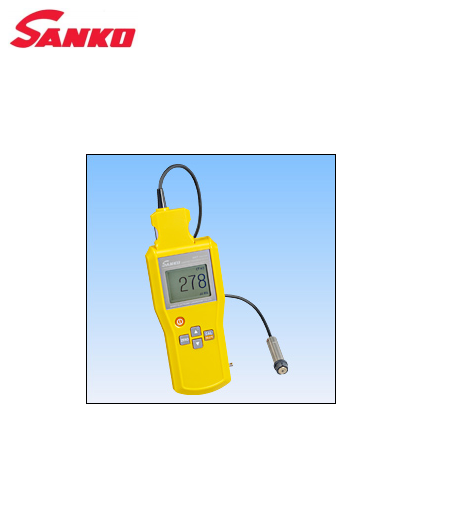

Máy đo độ dày lớp phủ bề mặt (Coating thickness meter) - Sanko Denshi

Model: SWT-7000-III-N

Specifications
Probe type  :  Dual FN-325 (exclusive for SWT-7000Ⅲ series)
Measuring method  :  Electromagnetic/Eddy current dual use
Measuring range  :  Ferrous:0~3.00mm, Nonferrous:0~2.50mm
Substrate detection  :  Automatic or manual switching
Display  resolutions  :  1μm:0~999μm
                By switching,
                0.1μm:0~400μm,
                0.5μm:400~500μm,
                0.01mm:(ferrous 1.00~3.00mm) , (nonferrous 1.00~2.50mm)
Accuracy (place the probe perpendicularly :  Ferrous &nonferrous dual use
to the flat face)                    0~100μm:±1μm or ±2% the read value
                             (ferrous)101μm~3.00mm:±2%
                             (nonferrous)101μm~2.50mm:±2%
Probe  :  One point contact constant pressure type,
      with V cut φ13×52mm, 72g
Option  :  V type probe adaptors (3 types: less Φ5, Φ5~10, Φ10~20 )
Accessories  :  Calibration standards (plastic foils)
          Zero plate (ferrous, nonferrous dual)
Measuring objectives  :  Fe substrate: coating, lining, thermal spraying, plating on magnetic
                         metal like iron, steel (except electrolyte nickel plating)
               NFe substrate: insulated films on non-magnetic metal like aluminum,
                         copper
