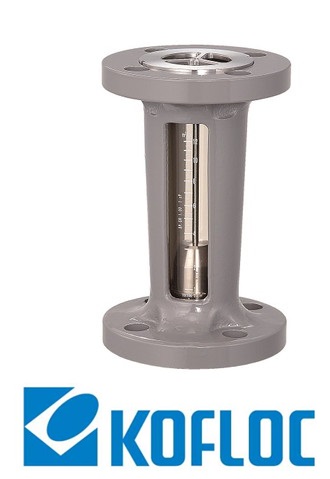

RK1950AP Thiết bị đo lưu lượng và điều khiển KoflocVietnam ANSdanang

Accuracy ±2%F.S
Max. operating temperature 120℃
Max. operating pressure 1 MPa for 40 A or less 0.8 MPa for 50 A or more
Direction of flow Bottom → Top
Coating Finish color: Gray (Close to Munsell N-6.5)
Epoxy powder baking
Connection standard JIS10K-RF 10A-100A
RC female thread 3/8–1 inch
Flange only
Part name Material
Float receiver SUS304
O-ring NBR
Tapered tube Polysulfone resin (Transparent amber)
Housing Ductile cast iron: FCD400
Rod SUS304
Float SUS304
Bore For water For air
10A 1.5-10L/min 120-400L/min
15A 1.5-15L/min 120-500L/min
20A 1.5-30L/min 0.12-1m3/min
25A 9-100L/min 0.35-3.5m3/min
32A 60-150L/min 2.5-6m3/min
40A 90-200L/min 3-7m3/min
50A 80-300LL/min 3-10m3/min
65A 250-500L/min 9-18m3/min
80A 250-500L/min 9-18m3/min
100A 400-900L/min 15-30m3/min
