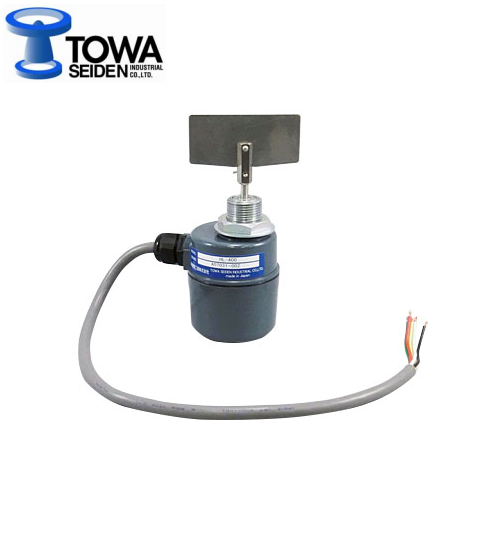

Cảm biến báo mức (Rotary paddle type level switch)
Xuất sứ: Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: TOWA SEIDEN VIET NAM
Mr. BảoCảm biến báo mức (Rotary paddle type level switch) - Towa Seiden
Model: HL-400H
Features:
Power supply voltage: AC 100/110 V 50/60 Hz or AC 200/220 V 50/60 Hz
Mounting Method: G3/4” (Tightening the base mounting plate with a locknut)
Power consumption: 1.5 W
Contact output: 1C Contact AC 250 V 5 A (Resistance load)
Detection torque (*1): About 4.9 N·cm
Slip torque (*2): About 11.76 - 14.70 N·cm
Number of rotations: 1 rpm
Materials: Product body chassis and cover Die-cast zinc, Main shaft and vane SUS304, Sealing Nitrile rubber
Ambient temperature during use: Inside the tank 60°C max; Outside the tank 55°C max
Pressure during use Inside the tank 0 – 0.49 kPa
Painting color Munsell 7.5GB4/15
